Description

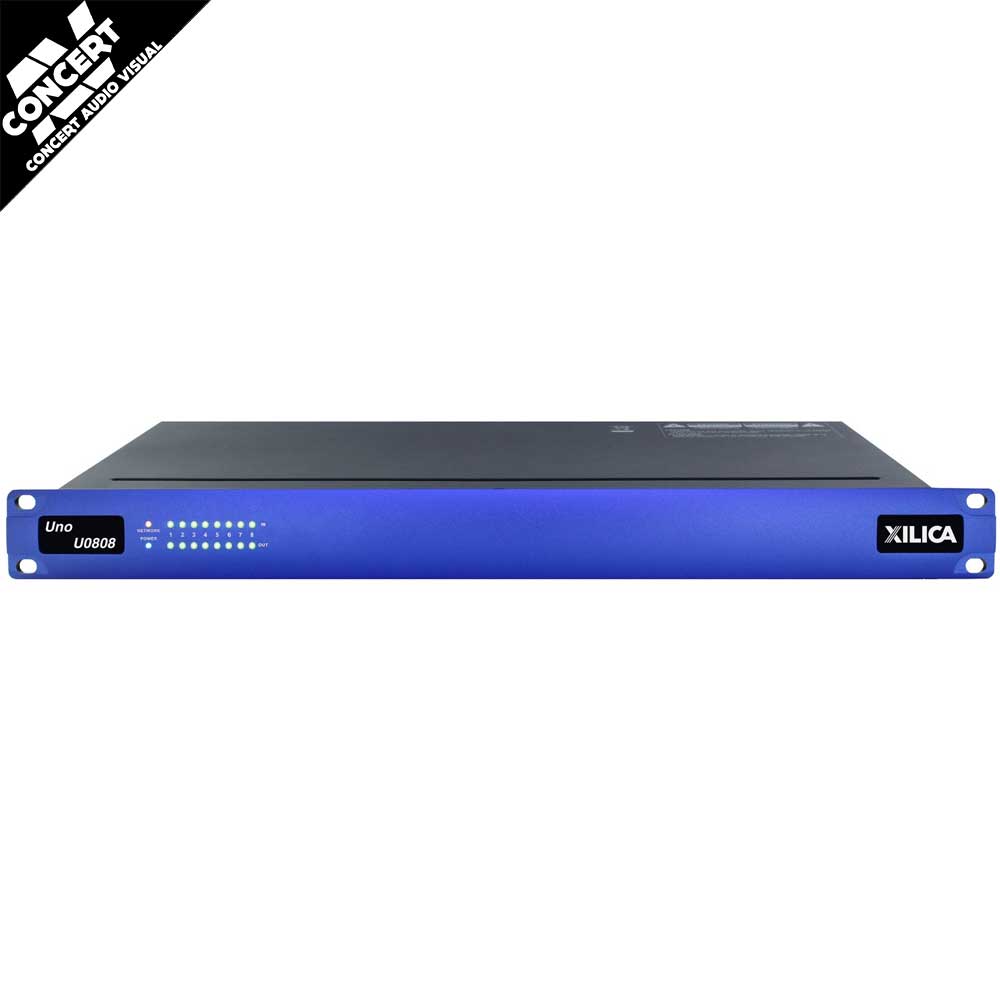

XILICA U0808 8x8 Programmable 48kHz Ethernet DSP Processor
The XILICA U0808 is an 8-input, 8-output fixed-install digital signal processor from Xilica’s Uno Series. Designed for commercial audio, venues, education, hospitality, houses of worship and integrated AV systems, it combines analogue mic/line I/O, Ethernet control and pre-configured DSP processing in a compact 1U rack chassis.
The U0808 provides 8 balanced analogue mic/line inputs with individually switchable 48V phantom power and 8 balanced line outputs. Audio is processed at 48kHz using high-performance 24-bit A/D and D/A conversion with a 40-bit floating-point DSP engine, making it suitable for routing, mixing, EQ, dynamics, delay, room combining and loudspeaker-management applications.
Key features
- 8 balanced analogue mic/line inputs
- 8 balanced analogue line outputs
- 48V phantom power switchable on mic inputs
- 48kHz sample rate
- High-performance 24-bit analogue conversion
- 40-bit floating-point DSP engine
- Ethernet programming and control
- Pre-configured Uno DSP architecture
- 4 × 2 GPIO for control and logic functions
- Non-volatile program memory
- 1U 19-inch rackmount chassis
DSP & system processing
The Uno platform supports installed-audio processing including mixers, equalizers, filters, crossovers, dynamics and gain control, routers, room combiners, delays, remote controls, meters and onboard logic. This makes the U0808 suitable for fixed installations that need compact 8×8 analogue signal routing and processing.
Technical specifications
- Model: Xilica Uno U0808
- Analogue inputs: 8 balanced mic/line
- Analogue outputs: 8 balanced line
- Phantom power: 48V switchable
- Input impedance: >10kΩ
- Output impedance: 50Ω
- Maximum level: +20dBu
- Frequency response: ±0.15dB, 20Hz–20kHz
- Dynamic range: 110dB typical, unweighted
- THD: 0.002% at 1kHz / +4dBu
- Sample rate: 48kHz
- Converter resolution: 24-bit
- DSP engine: 40-bit floating point
- Propagation delay: 3ms
- Audio connectors: 3.5mm Phoenix-style terminal blocks
- Network: RJ45 Ethernet for software control and configuration
- Power: 90–240VAC, 50–60Hz
- Rack size: 1RU
- Dimensions: approximately 483 × 44 × 229 mm
- Weight: approximately 5kg
- Chassis: Steel and aluminium
Legacy product note
The Xilica Uno U0808 is a legacy / end-of-life model. Xilica lists the U0808 as discontinued and no longer supported for factory service, repair parts or further software/firmware development. Xilica also advises that Uno processors require Xilica Designer 4.9 or earlier for programming.
Who is this for?
The U0808 is suited to AV integrators, installers, venues, schools, churches, hospitality sites and commercial facilities that need an 8×8 fixed-install DSP for routing, EQ, dynamics, delay and system control.
