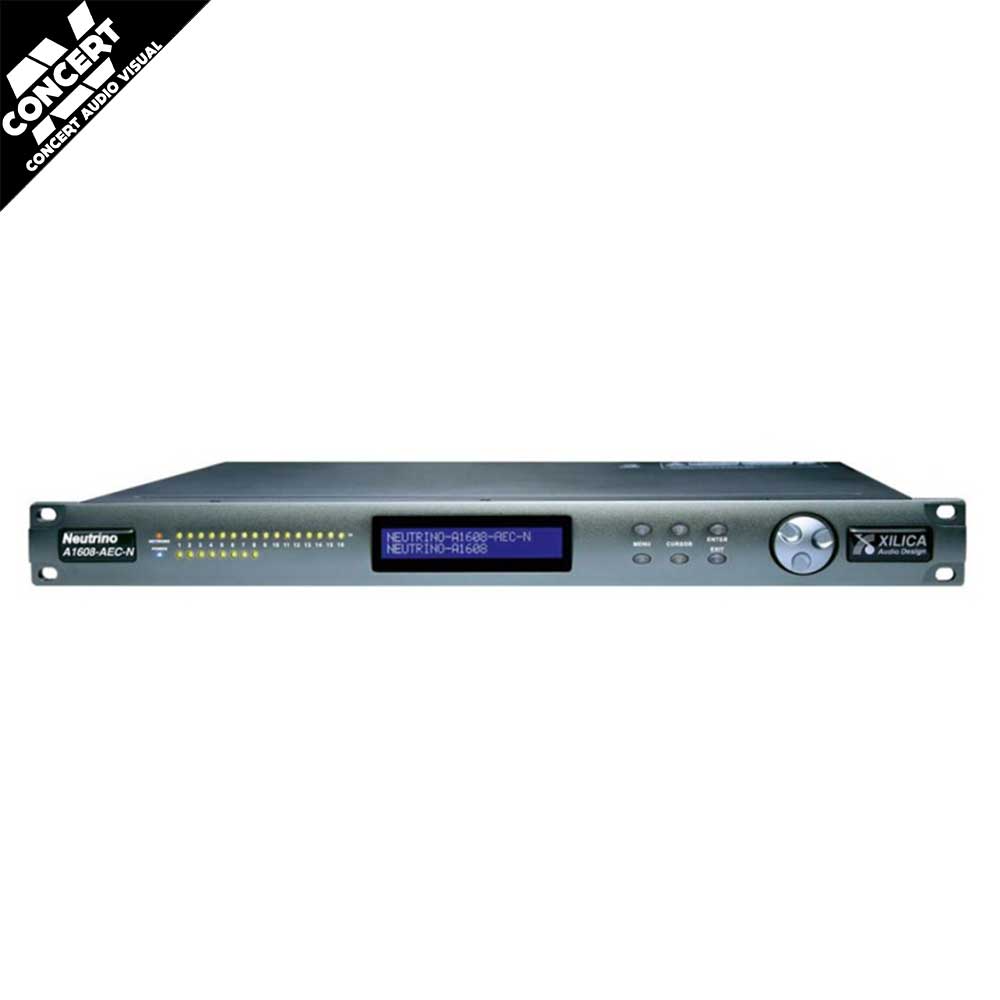

XILICA Neutrino A1608-AEC-N 16x8 DSP Processor with AEC & Dante
The XILICA Neutrino A1608-AEC-N is a professional open-architecture DSP processor designed for installed audio, conferencing and commercial AV systems. It combines 16 analogue mic/line inputs, 8 analogue outputs, up to 8 channels of acoustic echo cancellation (AEC) and 16x16 Dante network audio in a compact 1RU chassis.
Running at 48kHz with 24-bit converters and 40-bit floating-point DSP processing, the A1608-AEC-N provides flexible routing and signal processing for boardrooms, classrooms, houses of worship, hospitality venues, corporate spaces and other integrated AV applications.
Key Features
- 16 analogue mic/line inputs and 8 analogue outputs
- Up to 8 channels of low-latency acoustic echo cancellation
- 16x16 Dante network audio I/O
- 48kHz sampling rate
- High-performance 24-bit analogue converters
- 40-bit floating-point DSP processing
- Mic or line input operation
- Ethernet control and programming via Xilica Designer
- Flexible open-architecture drag-and-drop DSP configuration
- Phoenix-style 3.5mm analogue audio connections
- 1RU rackmount chassis
Designed for Installed AV & Conferencing
The A1608-AEC-N is especially well suited to systems where multiple microphones, loudspeakers and remote conferencing feeds need to work together. Its dedicated AEC processing helps reduce acoustic echo during conferencing, while Dante connectivity makes it easy to integrate networked audio devices across larger AV systems.
Technical Specifications
- Analogue I/O: 16 inputs / 8 outputs
- Dante I/O: 16x16 channels
- AEC: Up to 8 microphone channels
- Sampling Rate: 48kHz
- Converters: 24-bit
- DSP: 40-bit floating point
- Maximum Level: +20dBu
- Frequency Response: ±0.15dB, 20Hz–20kHz
- Dynamic Range: 110dB typical, unweighted
- Power: 90–240VAC, 50–60Hz
- Dimensions: 483 x 44 x 229mm
- Rack Size: 1RU
- Weight: Approx. 5kg
Who is this for?
Ideal for AV integrators, commercial installers, conference rooms, education facilities, houses of worship, corporate spaces and venues requiring flexible DSP processing, AEC and Dante network audio in a single rackmount processor.
