Description

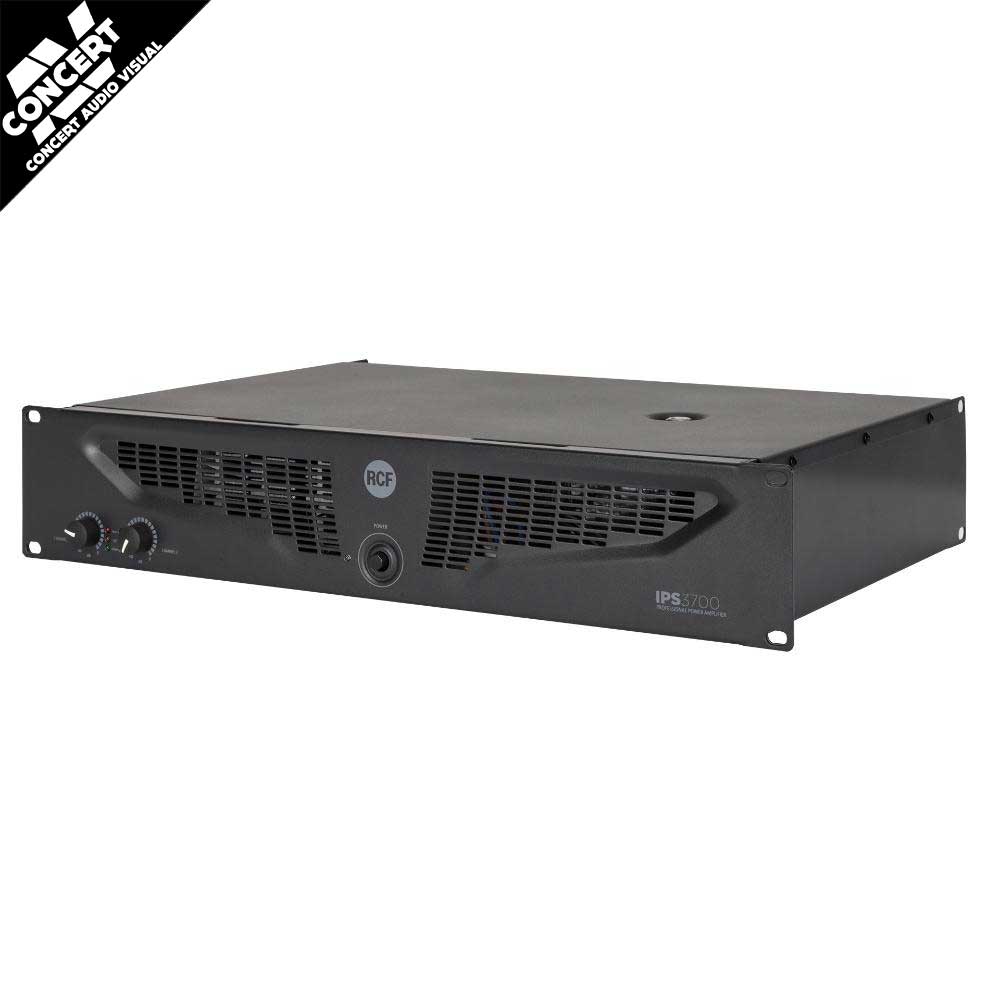

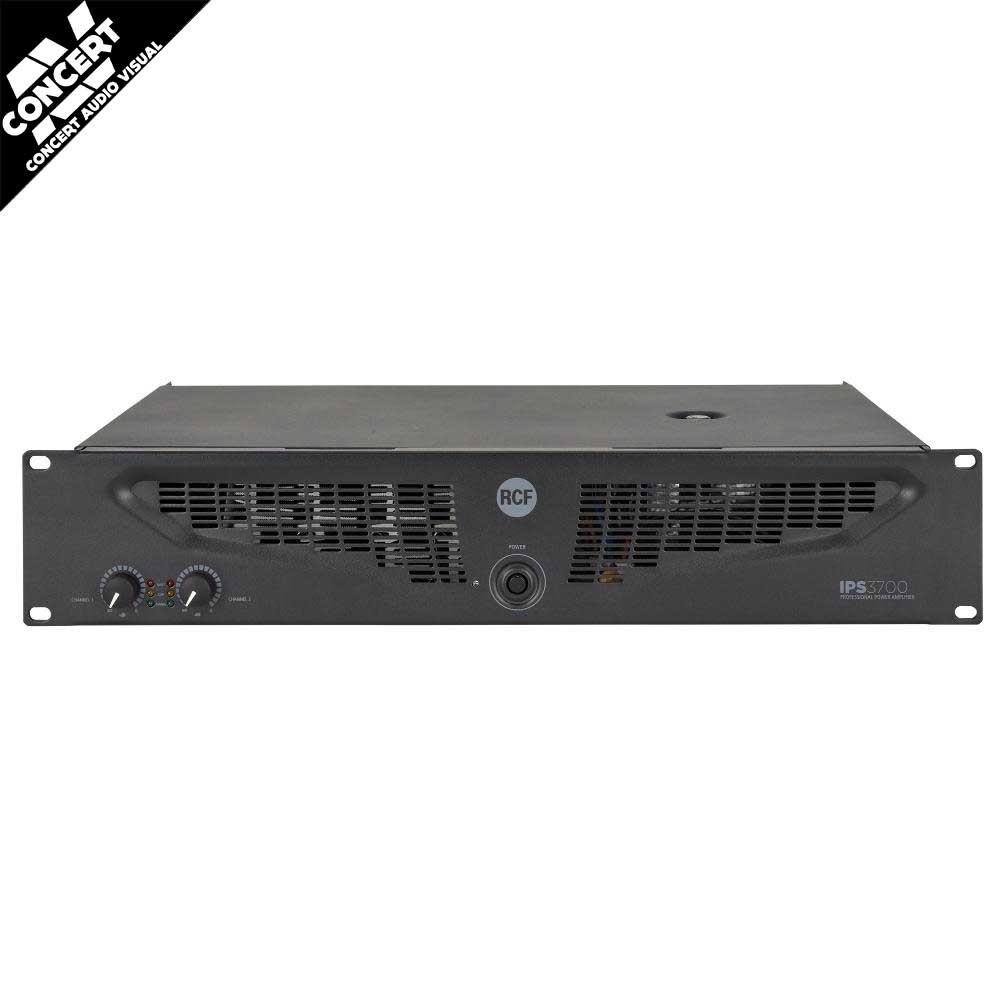

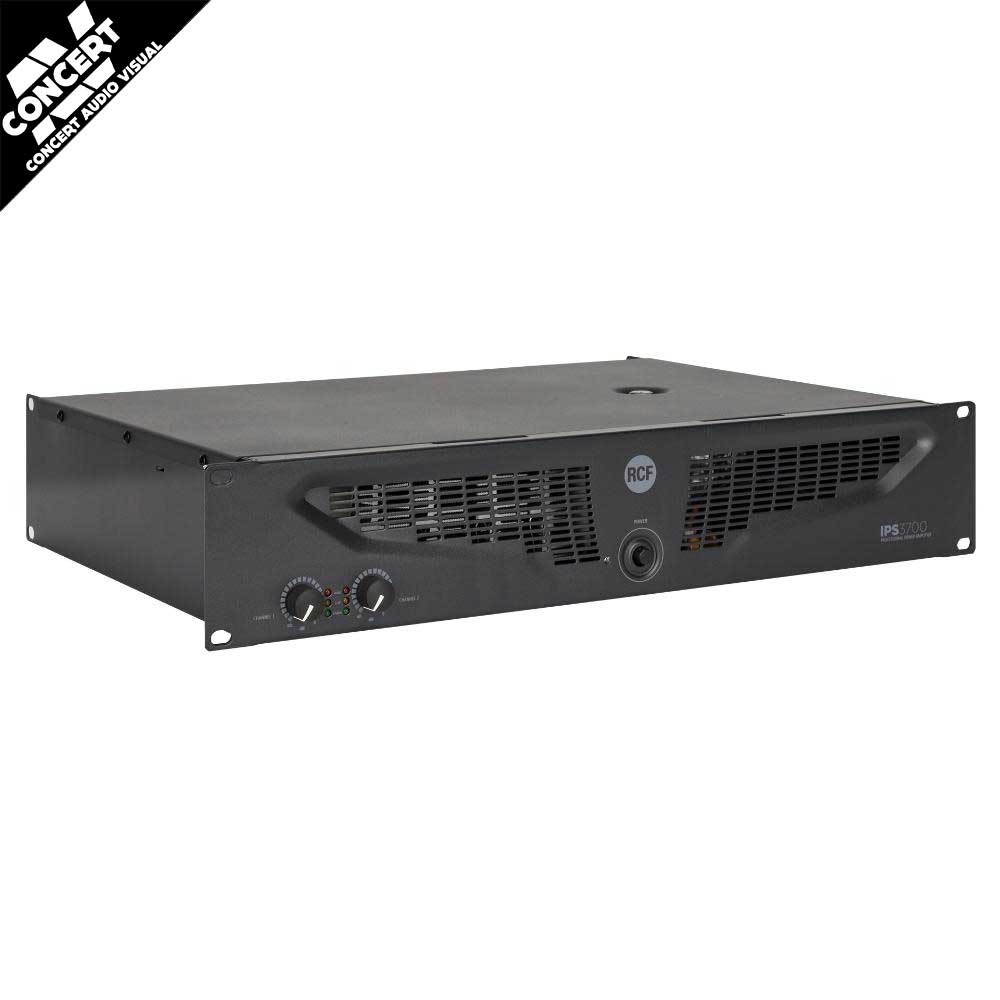

RCF IPS3700 - Class H power amplifiers - 2x1500 W RMS - 4 ohm
The RCF IPS 3700 is a high-output 2-channel professional Class H power amplifier designed for passive PA systems in live sound, touring, portable and installed audio applications. Delivering up to 2 x 1500 W RMS at 4 ohms, it combines substantial loudspeaker drive capability with a compact 19-inch 2U rackmount format.
The IPS 3700 can operate in stereo, mono or bridge modes, including up to 3000 W RMS bridged at 8 ohms. Balanced XLR inputs and XLR signal link outputs support straightforward integration into professional audio systems, while Speakon® NL4 loudspeaker outputs provide secure high-power connections. Independent gain controls, front-panel signal, clip and protect indicators, forced cooling and extensive protection circuitry make it suitable for demanding venue, production and fixed-installation environments.
Key features
- 2-channel professional Class H power amplifier
- 2 x 1500 W RMS at 4 ohms
- 2 x 1200 W RMS at 8 ohms
- 3000 W RMS bridged at 8 ohms
- Stereo, mono and bridge operating modes
- Balanced XLR line inputs
- XLR signal link outputs
- Speakon® NL4 loudspeaker outputs
- Independent channel gain controls
- Front-panel signal, clip and protect LED indicators
- Switchable 1.4 V / 0.775 V input sensitivity
- Forced fan cooling
- Short-circuit, thermal, DC, fuse and VHF protection
- 19-inch, 2U rackmount metal chassis
Amplifier specifications
- Amplifier class: Class H
- Channels: 2
- Output power at 4 ohms: 2 x 1500 W RMS
- Output power at 8 ohms: 2 x 1200 W RMS
- Bridged output at 8 ohms: 3000 W RMS
- Frequency response (-3 dB): 20 Hz - 20 kHz
- THD+N at 1 kHz, nominal power: <0.5%

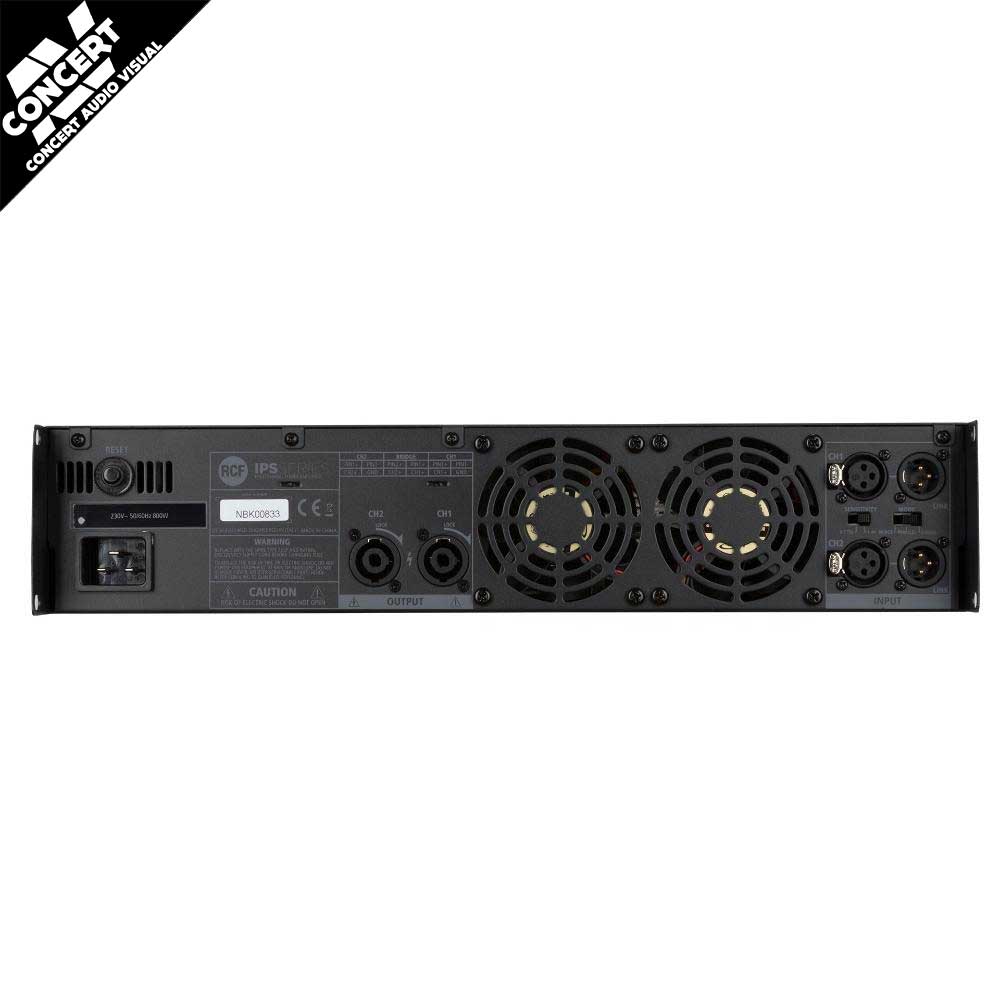

Connections & controls
- Line inputs: 2 x balanced XLR
- Signal outputs / links: 2 x XLR
- Speaker outputs: Speakon® NL4
- Configuration: DIP switch and front panel
- Operating modes: Stereo / mono / bridge
- Input sensitivity: Switchable 1.4 V / 0.775 V
Power, protection & physical specifications
- Operating voltage: 220-240 / 115 V AC, 50/60 Hz
- Maximum power consumption: 700 W
- Cooling: Forced fan cooling
- Protection: Short circuit, thermal, DC, fuses and VHF
- Case material: Metal
- Colour: Black
- Rack format: 19-inch, 2U
- Dimensions (H x W x D): 88 x 482 x 255 mm
- Weight: 16.55 kg
- Compliance: CE compliant
Looking to buy the RCF IPS 3700 professional power amplifier? Shop RCF amplification and professional audio equipment online from Concert AV in Melbourne, with fast shipping Australia wide.
