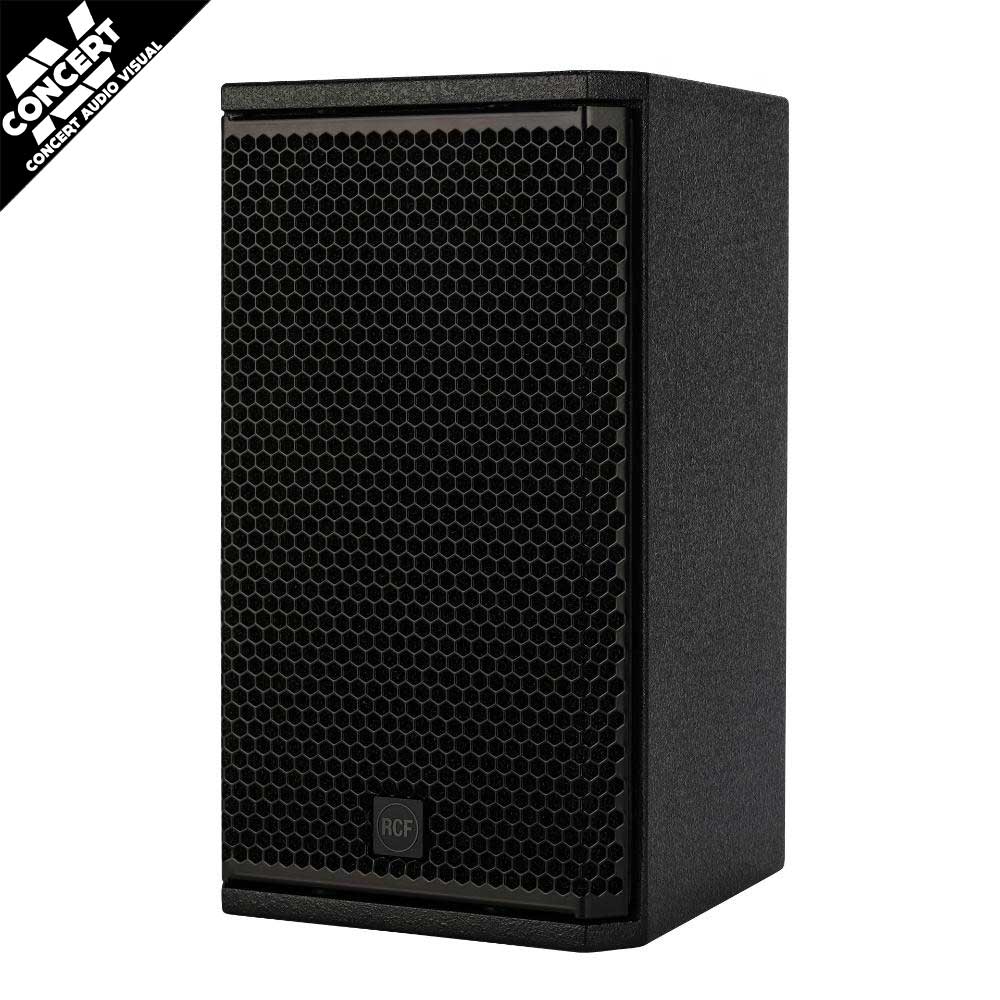

RCF COMPACT M06 Passive Speaker - 6 Inch 100 Watt DEMO
The RCF COMPACT M06 is a compact two-way passive professional loudspeaker designed for installed sound, near-field monitoring and background or foreground music applications where clear, intelligible audio is required from a discreet enclosure. This DEMO unit combines a 6-inch high-power woofer with a neodymium dome tweeter, delivering a 60 Hz to 20 kHz frequency response, wide 120° × 80° coverage and up to 116 dB maximum SPL.
Rated at 100 W RMS and 400 W peak into 8 ohms, the COMPACT M06 uses a high-quality plywood cabinet with a steel front grille and multiple installation points. Four-pole Euroblock connections provide audio input and a parallel link output, while optional RCF mounting accessories support wall or ceiling installation. Its compact dimensions make it well suited to restaurants, retail spaces, corporate environments, houses of worship, venues and other permanent audio installations.
Demo Unit Condition
As new - Just been taken out of Box.
Key features
- Compact two-way passive professional speaker
- 100 W RMS power handling
- 400 W peak power handling
- 8 ohm nominal impedance
- 116 dB maximum SPL at 1 metre
- 60 Hz–20 kHz frequency response (-10 dB)
- 120° horizontal × 80° vertical coverage
- 90 dB system sensitivity
- 6-inch woofer with 1.5-inch voice coil
- Neodymium dome tweeter with 1-inch voice coil
- 2200 Hz crossover frequency
- Dynamic active MOSFET protection

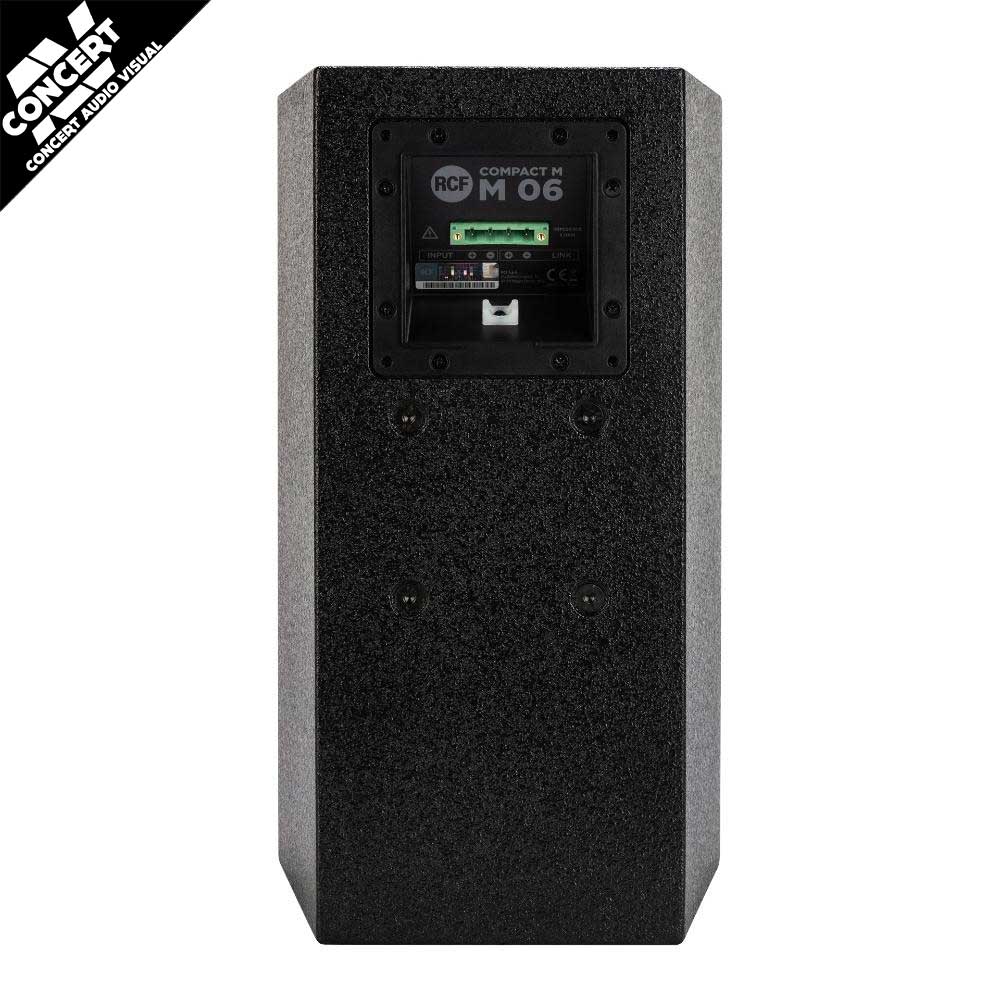

- 4-pole Euroblock input and parallel link output
- Plywood cabinet with steel front grille
- Multiple M6 and M8 installation points
- Wall or ceiling installation supported with optional mounting accessories
- Black RAL 9005 finish
Technical specifications
- Speaker type: Two-way passive full-range
- Frequency response (-10 dB): 60 Hz–20 kHz
- Maximum SPL @ 1 m: 116 dB
- Horizontal coverage: 120°
- Vertical coverage: 80°
- Directivity index Q: 7
- System sensitivity: 90 dB
- Nominal impedance: 8 ohms
- Power handling: 100 W
- Peak power handling: 400 W
- Crossover frequency: 2200 Hz
- Woofer: 1 × 6-inch, 1.5-inch voice coil
- Tweeter: Neodymium dome tweeter, 1-inch voice coil
- Input: Euroblock
- Output: Euroblock parallel link
- Cabinet material: Plywood
- Grille: Steel with fabric backing
- Mounting hardware: 4 × M6, 2 × M8
- Colour: Black, RAL 9005
- Dimensions (H × W × D): 365 × 211 × 232 mm
- Weight: 5.5 kg
- RCF part number: 13000582
- EAN: 8024530017781
- Compliance: CE
Applications
The COMPACT M06 is suited to permanent and near-field sound reinforcement in restaurants, retail stores, corporate spaces, bars, clubs, worship spaces and venues where compact dimensions, wide coverage and speech/music intelligibility are important.
