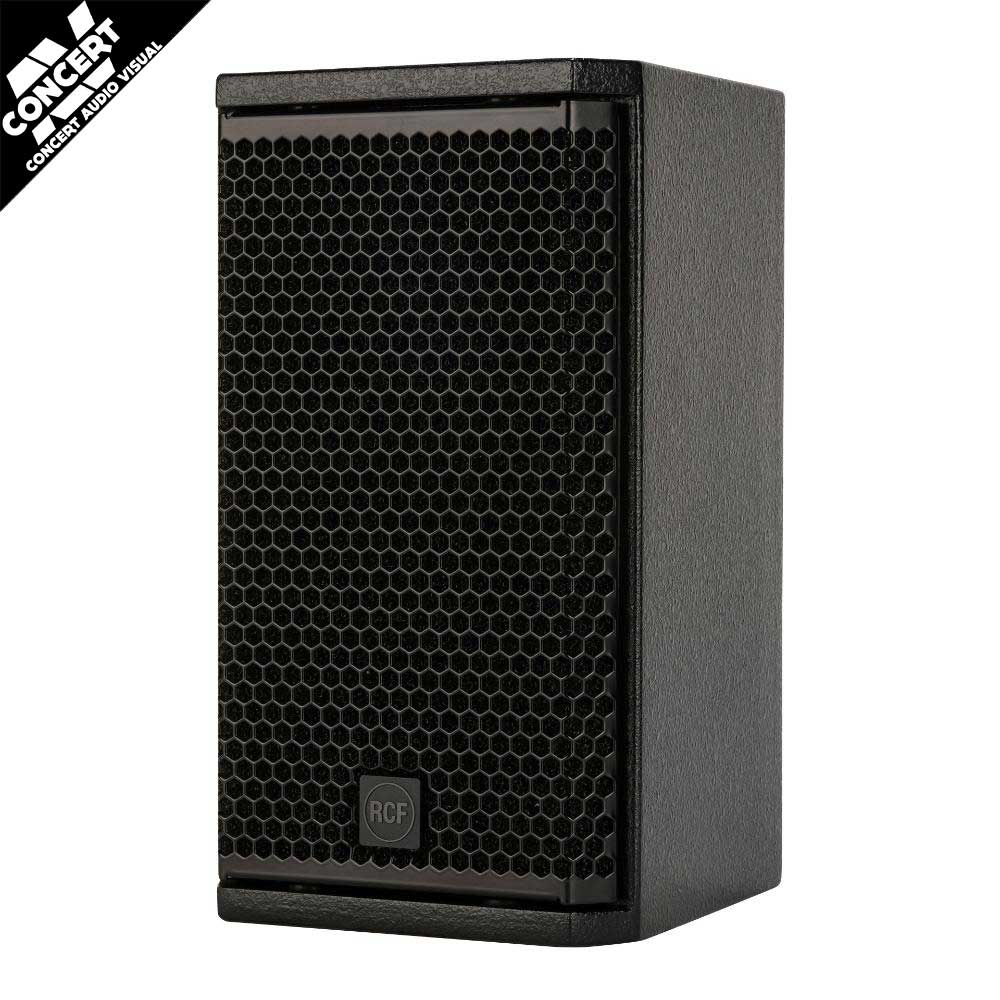

RCF COMPACT M05 Passive Speaker - 5 Inch 80 Watt DEMO
The RCF COMPACT M 05 is a compact two-way passive full-range loudspeaker designed for high-quality installed audio in venues where clear, balanced sound and discreet styling are important. Its 5-inch high-power woofer and wave-guided neodymium dome tweeter deliver smooth frequency response, strong intelligibility and impressive output for such a compact enclosure, making it well suited to restaurants, retail spaces, bars, corporate venues, hospitality environments and other near-field sound applications.
With 80 W RMS power handling, up to 115 dB maximum SPL and wide 120° x 80° coverage, the COMPACT M 05 can be used for both background music and more energetic foreground audio. The rigid plywood cabinet, steel front grille and multiple installation points make it a practical choice for permanent commercial and architectural installations, while Euroblock input and parallel link connections simplify system wiring.
Demo Unit Condition
As new - Just been taken out of Box.
Key features
- Compact two-way passive full-range loudspeaker
- 80 W RMS power handling
- 320 W peak power handling
- 115 dB maximum SPL at 1 metre
- 70 Hz - 20 kHz frequency response (-10 dB)
- 120° horizontal x 80° vertical constant-directivity coverage
- 5-inch high-power woofer with 1.2-inch voice coil
- Neodymium dome tweeter with 1-inch voice coil
- 89 dB system sensitivity
- 8 ohm nominal impedance
- High-quality plywood enclosure
- Steel front grille with acoustic cloth
- Installation points on rear, top and bottom panels

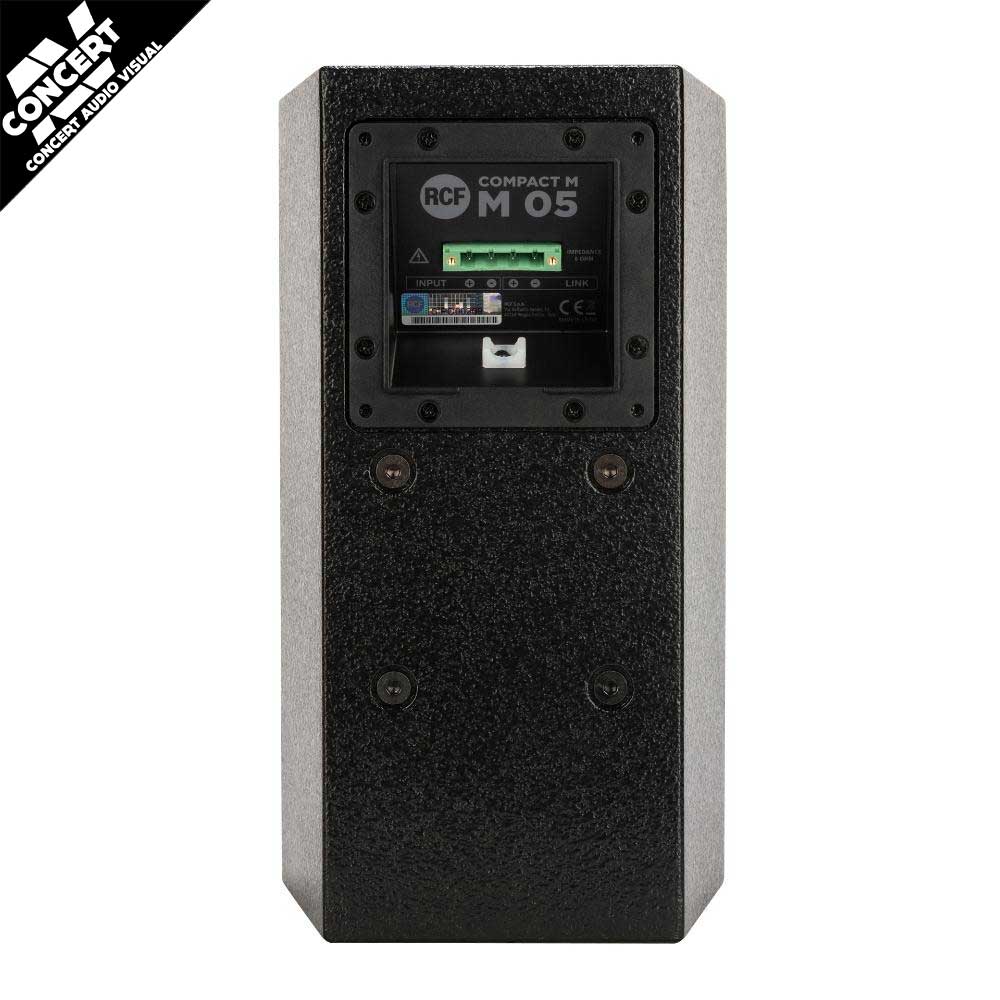

- 4-pole Euroblock audio input with parallel link output
- Compatible with optional RCF wall and ceiling mounting accessories
Technical specifications
- Speaker type: Two-way passive full-range
- Frequency response: 70 Hz - 20 kHz (-10 dB)
- Maximum SPL: 115 dB @ 1 m
- Horizontal coverage: 120°
- Vertical coverage: 80°
- Directivity index Q: 7
- System sensitivity: 89 dB
- Nominal impedance: 8 ohms
- Power handling: 80 W RMS
- Peak power handling: 320 W
- Crossover frequency: 2200 Hz
- Woofer: 1 x 5-inch, 1.2-inch voice coil
- Tweeter: Neodymium dome tweeter, 1-inch voice coil
- Input: Euroblock
- Output / link: Euroblock
- Cabinet material: Plywood
- Hardware: 4 x M6, 2 x M8
- Grille: Steel with acoustic cloth
- Dimensions: 303 x 172 x 191 mm
- Weight: 4.2 kg
- Compliance: CE compliant
Applications
The COMPACT M 05 is ideal for fixed installations including restaurants, cafés, retail stores, bars, corporate spaces, function rooms, hospitality venues and other environments requiring compact loudspeakers with strong speech intelligibility and high-quality music reproduction.
