RCF COMPACT M04 Passive Speaker - 4 Inch 60 Watt DEMO

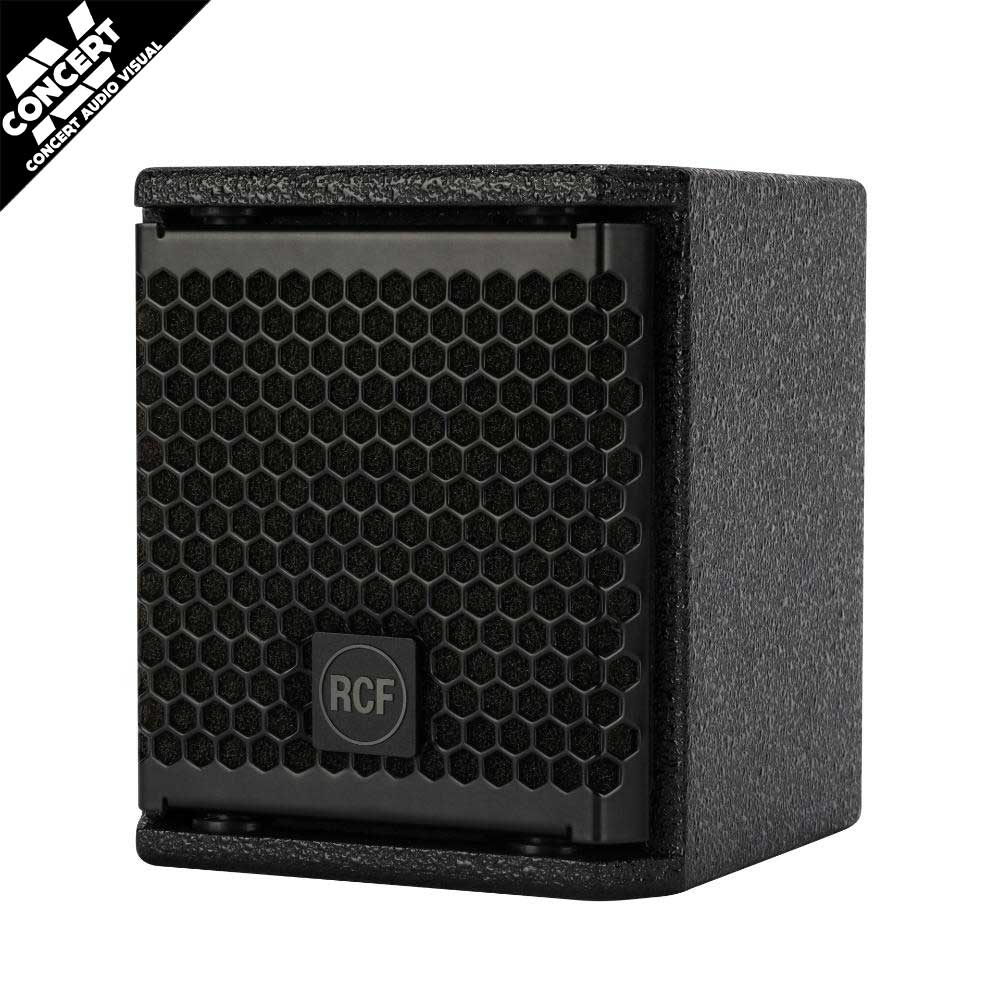

The RCF COMPACT M 04 is an ultra-compact two-way passive coaxial loudspeaker designed for high-quality near-field sound and permanent installation applications. Its 4-inch coaxial woofer and neodymium dome tweeter deliver smooth, balanced audio with excellent speech intelligibility, making the M 04 a strong choice for restaurants, retail spaces, hospitality venues, corporate rooms and other environments where sound quality and unobtrusive styling are equally important.
Despite its small enclosure, the COMPACT M 04 provides 60 W RMS power handling, up to 113 dB maximum SPL and very wide 120° x 120° coverage. The high-quality plywood cabinet, steel grille and compact dimensions make it easy to integrate into architectural spaces, while the standard product design supports wall or ceiling installation using its mounting hardware and bracket system.
Demo Unit Condition
As new - Just been taken out of Box.
Key features
- Compact two-way passive coaxial loudspeaker
- 60 W RMS power handling
- 240 W peak power handling
- 113 dB maximum SPL at 1 metre
- 90 Hz - 20 kHz frequency response (-10 dB)
- 120° x 120° constant-directivity coverage
- 4-inch coaxial woofer with 1-inch voice coil
- Neodymium dome tweeter with 1-inch voice coil
- 89 dB system sensitivity
- 16 ohm nominal impedance
- High-quality plywood enclosure
- Steel front grille with acoustic cloth

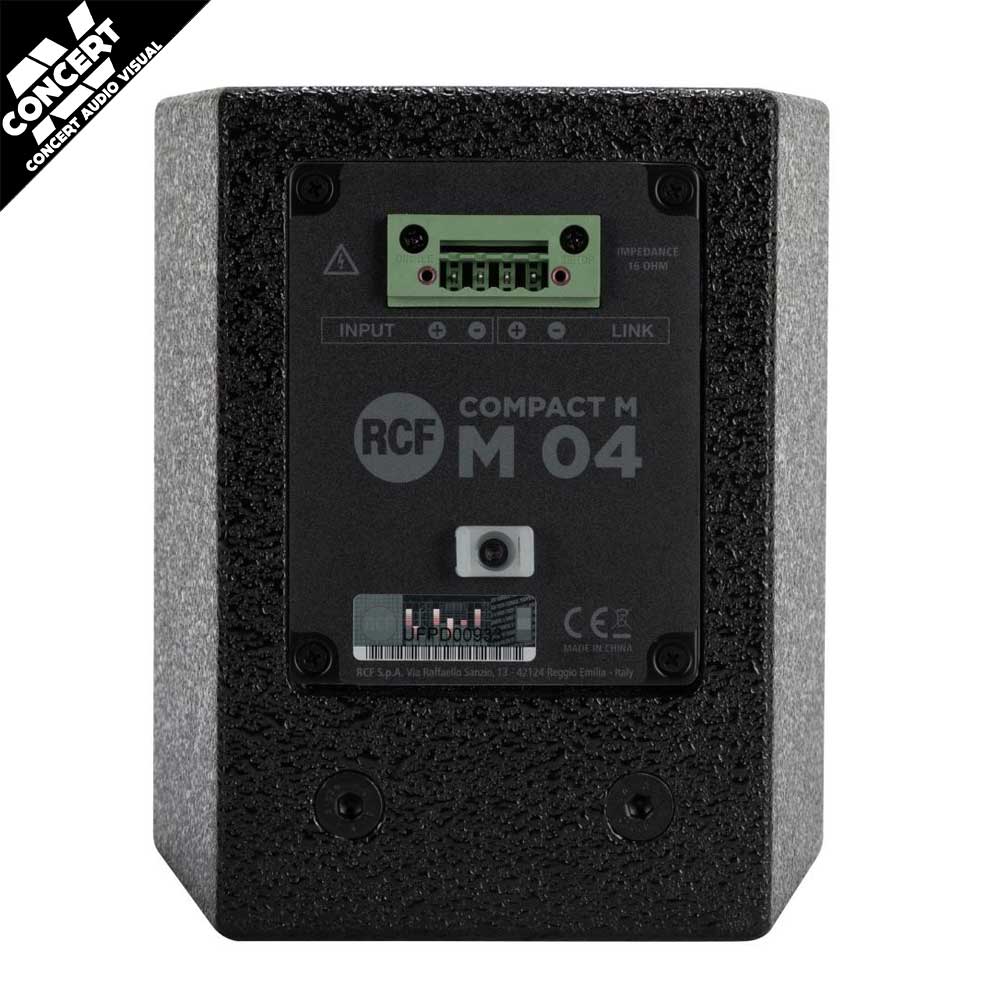

- Euroblock audio input and parallel link output
- Wall-mount bracket supplied with the standard model
- Compact form factor for discreet architectural installations
Technical specifications
- Speaker type: Two-way passive full-range coaxial
- Frequency response: 90 Hz - 20 kHz (-10 dB)
- Maximum SPL: 113 dB @ 1 m
- Horizontal coverage: 120°
- Vertical coverage: 120°
- Directivity index Q: 6
- System sensitivity: 89 dB
- Nominal impedance: 16 ohms
- Power handling: 60 W RMS
- Peak power handling: 240 W
- Crossover frequency: 1800 Hz
- Woofer: 1 x 4-inch, 1-inch voice coil
- Tweeter: Neodymium dome tweeter, 1-inch voice coil
- Input: Euroblock
- Output / link: Euroblock
- Cabinet material: Plywood
- Hardware: 2 x M6, 2 x M8
- Grille: Steel with acoustic cloth
- Dimensions: 148 x 132 x 145 mm
- Weight: 2.3 kg
- Compliance: CE compliant
Applications
The COMPACT M 04 is particularly well suited to near-field and distributed audio systems in restaurants, cafés, retail stores, corporate spaces, hospitality venues, meeting rooms and other installations where compact dimensions, wide coverage and clear audio are required.
Looking to buy the RCF COMPACT M04 Demo speaker? Shop professional installation speakers and commercial audio equipment online from Concert AV in Melbourne, with fast shipping Australia wide.
