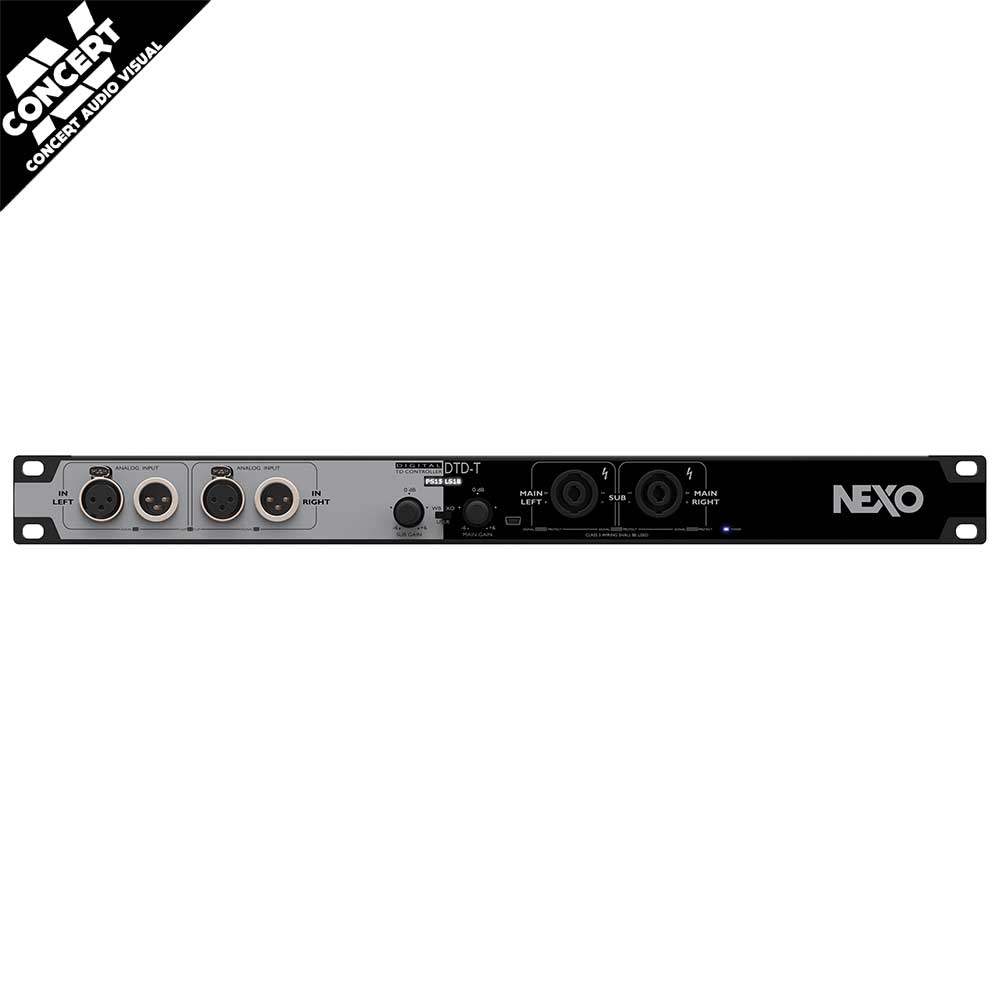

NEXO DTD-T Digital TD Controller – Standard Touring Version
Advanced NEXO system processing, ready for the road – available from Concert AV.
The NEXO DTD-T (Digital TD Controller – Touring) brings flagship NXAMP processing into a compact 1U rack unit, perfect for PS and LS Series loudspeakers and fully phase-compatible with other NEXO systems. It delivers precise crossover, EQ, time alignment and speaker protection with ultra-low latency, making it ideal for professional touring rigs, venues, churches and install applications.
Concert AV can supply the DTD-T on its own or as part of a complete NEXO system package, with system design and setup support available across Australia.
Why choose the NEXO DTD-T from Concert AV?
-
Perfect partner for NEXO PS & LS systems – Optimised presets and linear phase processing for a clean, coherent sound.
-
Tour-ready and install-ready – Lightweight 1U unit, robust build, and simple front-panel control.
-
Fast, reliable setup – Automatic amplifier sensing and easy Sub/Main gain and crossover controls.
-
Flexible connectivity – Analogue, AES/EBU, USB audio and optional Dante™ (DTD-T-N) for networked audio.
-
Expert local support – Concert AV’s team can help you configure and deploy NEXO systems in real venues, not just on paper.
Based in Melbourne, Concert AV supplies NEXO solutions to production companies, venues, houses of worship and installers across Australia, with shipping to Sydney, Brisbane, Adelaide, Hobart, regional centres and beyond.
Key Features
-
Digital speaker controller for NEXO PS and LS Series
-
Processing derived from NEXO NXAMP technology
-
Crossover, EQ, time alignment and speaker protection in one compact unit
-
Ultra-low latency: < 1 ms analogue in-to-out (flat setup)
-
High audio quality:
-
Frequency response (mains): 20 Hz – 20 kHz, ±0.5 dB
-
Dynamic range: up to 112 dB (mains out)
-
THD: < 0.001% (mains out)
-
-
Automatic Amplifier Sensing – no complex setup required
-
Simple front panel with:
-
Sub Gain
-
Main Gain
-
Crossover Mode selection
-
-
Status indicators for:
-
Input signal/peak
-
Amplifier input signal
-
Speaker protect
-
Connectivity & I/O
Analogue Inputs
-
2 x electronically balanced inputs
-
Connectors: 2 x XLR-F with XLR-M link
-
Max input level: +22 dBu
-
Input impedance: 20 kΩ
-
96 kHz / 24-bit conversion
Analogue Outputs
-
3 x electronically balanced outputs (L, R, summed mono sub)
-
Connectors: 3 x XLR-M
-
Max output level: +22 dBu
-
Output impedance: 200 Ω
-
48/96 kHz, 24-bit
Amplifier Sensing Inputs
-
4 x floating, high-voltage balanced inputs
-
Connectors: 2 x 4-pole SP connectors
-
Max input: +50 dBu (up to approx. 8000 W / 8 Ω)
-
Input impedance: 364 kΩ
AES Digital Input
-
1 x AES/EBU stereo digital input
-
Connector: 1 x XLR-F
-
44.1–96 kHz, 16/20/24-bit
Optional Dante™ (DTD-T-N)
-
2 x Dante channels
-
1 x ruggedised RJ45
-
48–96 kHz / 24-bit
USB Audio
-
2-channel USB audio input
-
Connector: mini USB type B
-
48 kHz / 16-bit
-
Also used for advanced control (USB, and RJ45 on DTD-T-N)
Physical & Power
-
Dimensions (W x H x D): 480 x 44 x 65 mm (1U)
-
Weight: 1.3 kg
-
Power: 90–240 V, 50/60 Hz
-
Power consumption: 20 W max
-
Operating temperature: 0 °C – 40 °C
-
Storage temperature: -20 °C – 60 °C
Ideal Applications
-
Touring NEXO PS/LS systems
-
Live music venues and clubs
-
Churches and auditoriums
-
Corporate AV and performance spaces
-
Installed NEXO systems needing simple, reliable loudspeaker management
