Description

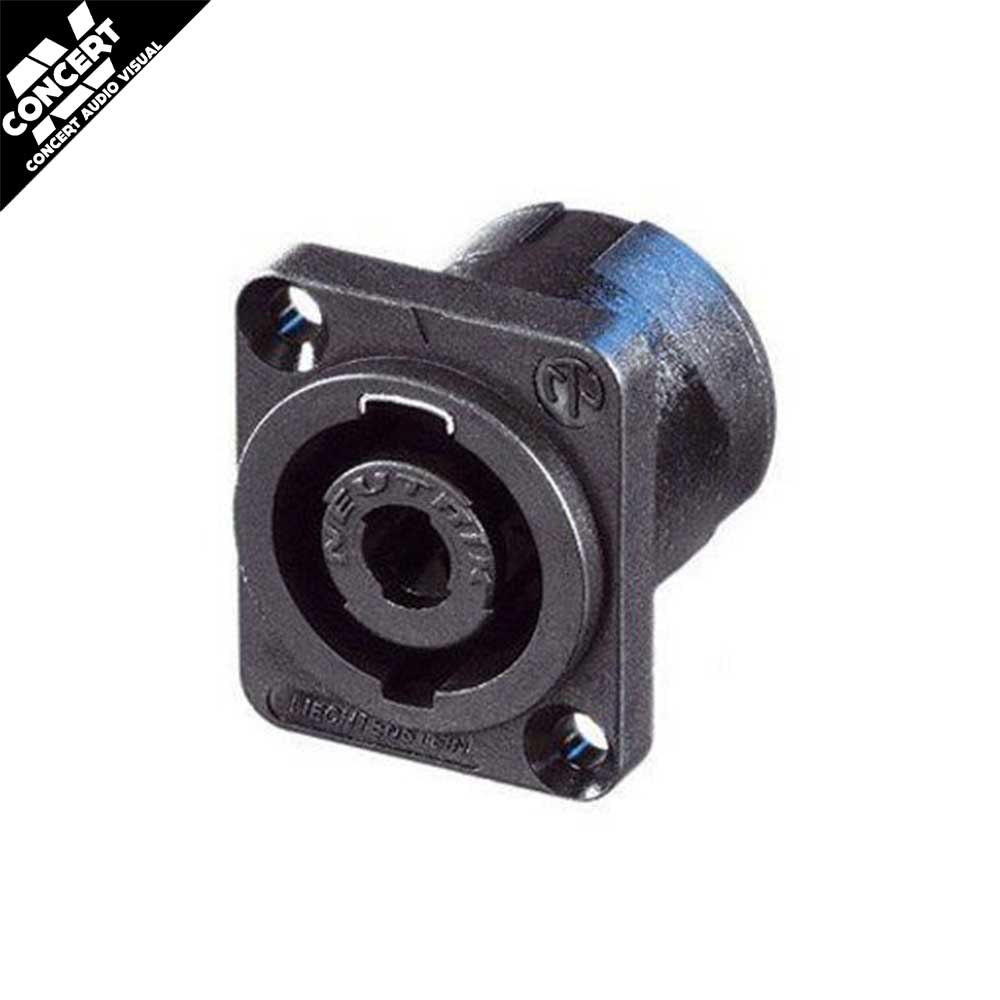

NEUTRIK NL4MP – 4-Pole Speakon Panel Mount Connector
Reliable & Rugged Loudspeaker/Amplifier Interconnect for Professional Audio Systems
The NEUTRIK NL4MP is a 4-pole Speakon chassis connector designed for speaker and amplifier interconnections in both touring and installed sound systems. With its industry-standard D-size mounting, robust construction, and secure twist-lock mechanism, the NL4MP is the go-to choice for bi-amped, stereo, or passive setups.
Engineered for maximum reliability and ease of termination, this panel-mount connector is compatible with all common Speakon plugs including NL2FC, NL2FX, NL4FX, and NL4FC.
Key Features:
-
🔌 4-Pole Panel Mount Connector – Ideal for bi-amped, passive, or stereo loudspeaker setups
-
📏 Universal D-Size Housing – Compatible with standard panel cutouts in speaker enclosures, amp racks, and stage boxes
-
🛠️ Rear Termination Options – Solder tabs or fast connection via optional Neutrik NLFASTON tabs
-
🔒 Precise Twist-Lock Latching System – Ensures secure, vibration-resistant connection every time
-
🧲 Metal Insert in Locking Area – Increases durability and ensures a solid locking mechanism
-
🧱 Glass-Fibre Reinforced Materials – Extremely robust and built for demanding professional use
-
💨 Airtight Construction – Ideal for high-power speaker applications where sealed enclosures matter
-
✅ Compatible With: NL2FC, NL2FX, NL4FX, NL4FC
-
🔩 Mounting: Countersunk through holes, 3/16" flat tabs
-
🔒 Secure Keyway Design – Prevents misalignment and guarantees reliable mating
Specifications:
-
Current Rating: 30 A RMS continuous
-
Connection Type: Solder or Faston terminals
-
Mounting Type: Panel mount (D-size standard)
-
Poles: 4
-
Housing: Glass-reinforced material
-
Protection: Airtight, vibration-resistant
-
Authentication: Genuine Neutrik with hologram branding
From live PA systems to professional installations, the NEUTRIK NL4MP offers unbeatable performance, reliability, and compatibility for your loudspeaker and amplifier connections.
Now available at Concert AV – Australia’s premier source for Neutrik Speakon connectors and pro audio solutions.
