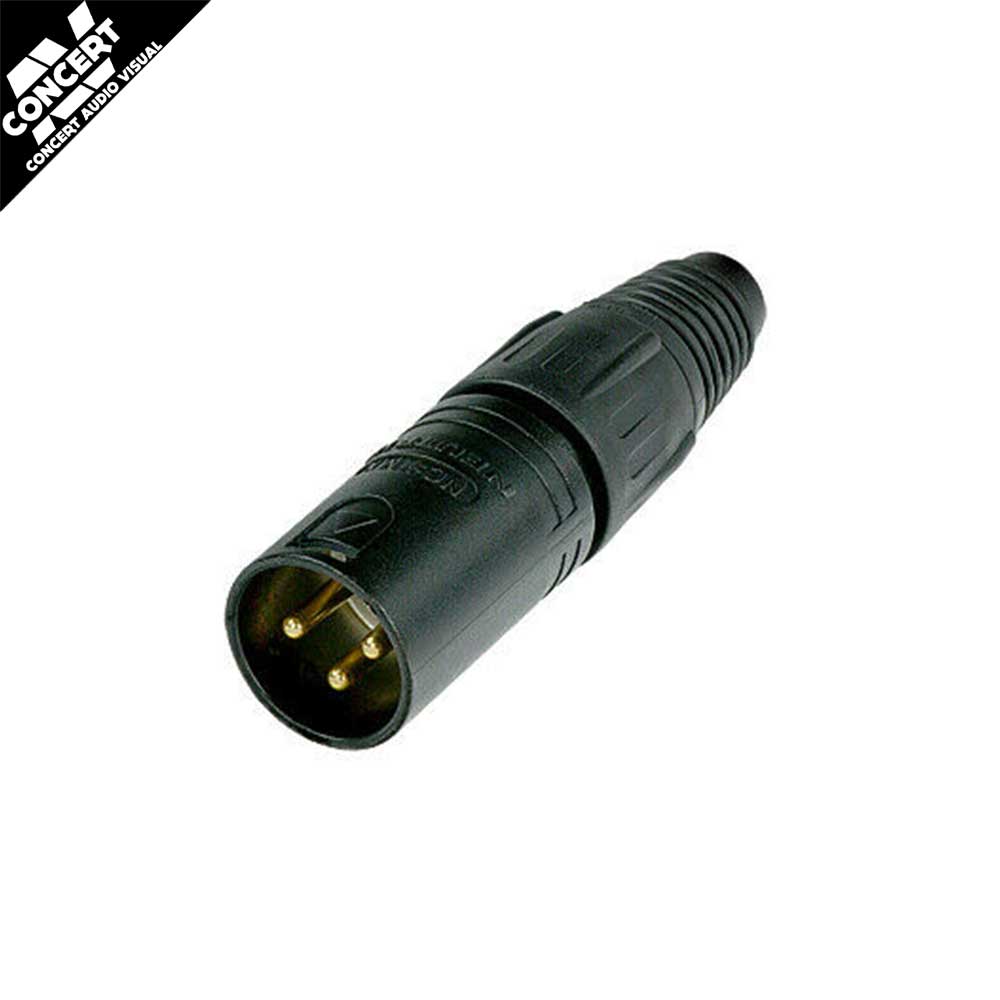

NEUTRIK NC3MXB – 3-Pin Male XLR Cable Connector (Black, Gold-Plated Contacts)
Professional-Grade Connector with Sleek Finish and Reliable Signal Integrity
The NEUTRIK NC3MXB is a rugged, 3-pole male XLR cable connector featuring a black metal housing, gold-plated contacts, and a secure chuck-style strain relief. Part of Neutrik’s trusted X Series, this connector is engineered for fast, tool-free assembly and long-lasting performance in both studio and live sound environments.
Its robust zinc die-cast shell, ergonomic design, and high-spec internals make it ideal for professional audio cables requiring durability, low contact resistance, and superior cable retention.
Key Features:
-
⚡ Gold-Plated Brass Contacts – For optimal signal transmission and corrosion resistance
-
🛡️ Black Chromium Zinc Die-Cast Shell – Durable, scratch-resistant, and sleek in appearance
-
🔧 Chuck-Type Strain Relief – Secures cable firmly without damage
-
🔄 Tool-Free Assembly – Assembles easily with just 4 parts – no screws required
-
🔒 Latch Locking Mechanism – Reliable connection with positive locking
-
🧱 Polyurethane Boot with Rubber Gland – Provides high protection against cable bending stresses
-
🧲 POM Strain Relief & Polyamide Insert – Strong internal structure for years of use
-
🖍️ Colour Coding Options – Compatible with Neutrik coloured rings and boots for identification
Technical Specifications:
-
Contacts: 3-Pin Male, Gold-Plated over Nickel
-
Housing: Black Chromium-Plated Zinc Die-Cast
-
Insert Material: Polyamide
-
Boot Material: Polyurethane
-
Strain Relief: POM (Polyoxymethylene)
-
Locking Element: Zinc Die-Cast
-
Cable OD Range: Compatible with standard audio cables
-
Contact Resistance: ≤ 3 mΩ
-
Insulation Resistance: > 10 GΩ
-
Current Rating: 16 A per contact
-
Voltage Rating: < 50 V
-
Dielectric Strength: Complies with IEC 61076-2-103
-
Solderability: IEC 68-2-20 compliant
-
Flammability: UL94 HB
-
Protection Class: IP40
-
Operating Temperature: -30°C to +80°C
Built for the rigours of pro audio, the NEUTRIK NC3MXB delivers exceptional contact reliability, fast assembly, and robust protection—ideal for custom cable builds and demanding AV applications.
