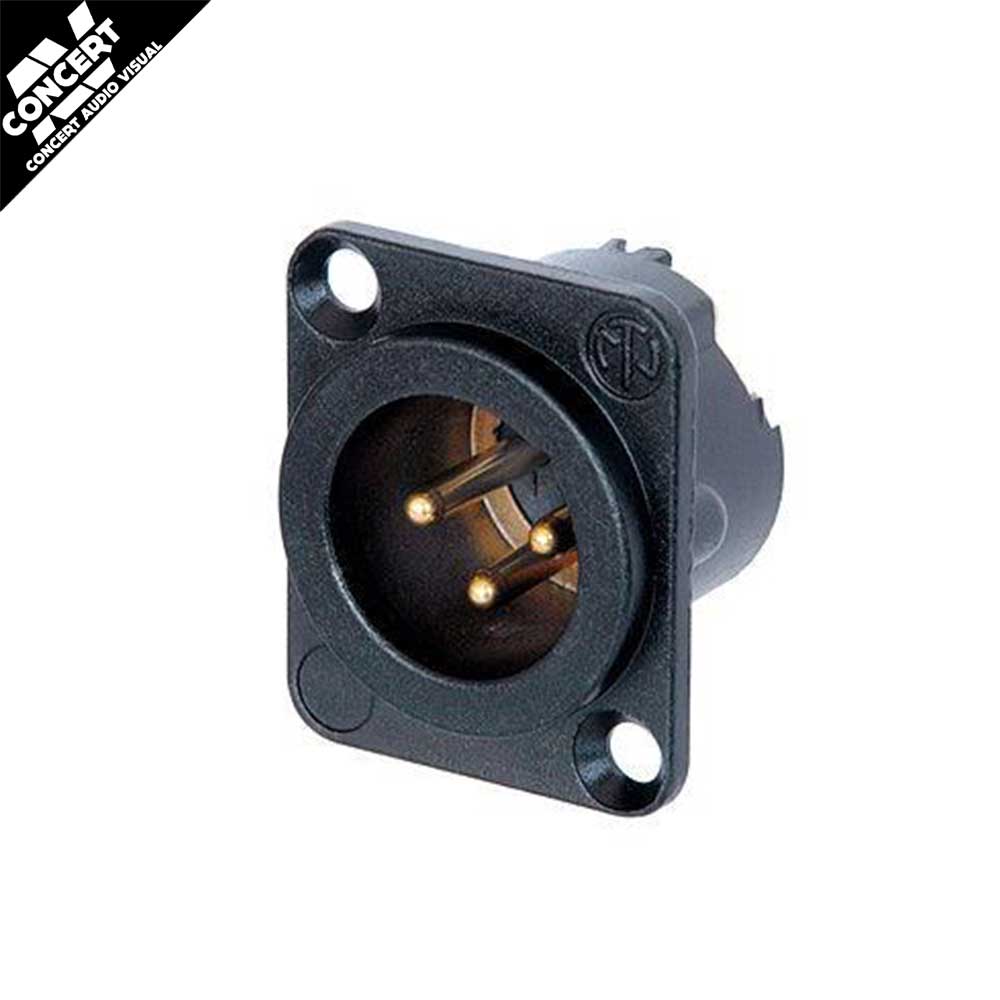

NEUTRIK NC3MD-LX-B – 3-Pin Male XLR Panel Mount Connector (Black, Gold Contacts)
Rugged, RF-Protected, and Built to Last
The NEUTRIK NC3MD-LX-B is a professional-grade 3-pole male XLR chassis connector with a sleek black finish and gold-plated contacts. Designed for maximum durability and exceptional signal integrity, this panel-mount connector is built into a compact all-metal D-style housing, ensuring compatibility with industry-standard installations across studio, stage, and AV systems.
A part of Neutrik’s DLX series, it features an innovative duplex ground contact system and a metal retention bar, providing excellent RF shielding, high pull-out force, and over 1,000 mating cycles of reliable use.
Key Features:
-
🛡️ All-Metal Black Housing – Zinc die-cast shell with black chromium plating for enhanced durability and EMI/RF shielding
-
🔒 Duplex Ground Contact – Ensures continuous ground connection between chassis and cable for excellent signal integrity
-
⚡ Gold-Plated Contacts – Brass contacts deliver high conductivity and corrosion resistance
-
🧲 Metal Retention Bar – Improved pull-out strength over older plastic designs
-
🔧 Large Solder Cups – Accepts wire sizes up to 14 AWG (2.5 mm²) for easier termination
-
🔩 Latch Locking Device – Reliable connection with secure locking mechanism
-
🛠️ Optional Pin 1 to Chassis Ground Connection – Simplifies grounding in custom builds
-
📏 Standard D-Size Mounting – Compatible with universal D-mount panel cutouts
-
🔌 Insert Material: PA 6.6 30% GR (polyamide, glass-reinforced)
-
🔋 Rated Current/Voltage: 16 A per contact / < 50 V
-
⚙️ Dielectric Strength: 1.5 kV DC
-
🔥 Flammability Rating: UL 94 HB
-
✅ Standards Compliant: IEC 61076-2-103, UL ECBT2.E135070
-
🧱 Protection Class: IP40
-
🔁 Lifetime: > 1,000 mating cycles
Ideal for patch panels, wall plates, equipment racks, and fixed installations, the NEUTRIK NC3MD-LX-B is engineered for professionals who demand precision, durability, and uncompromising signal quality.
