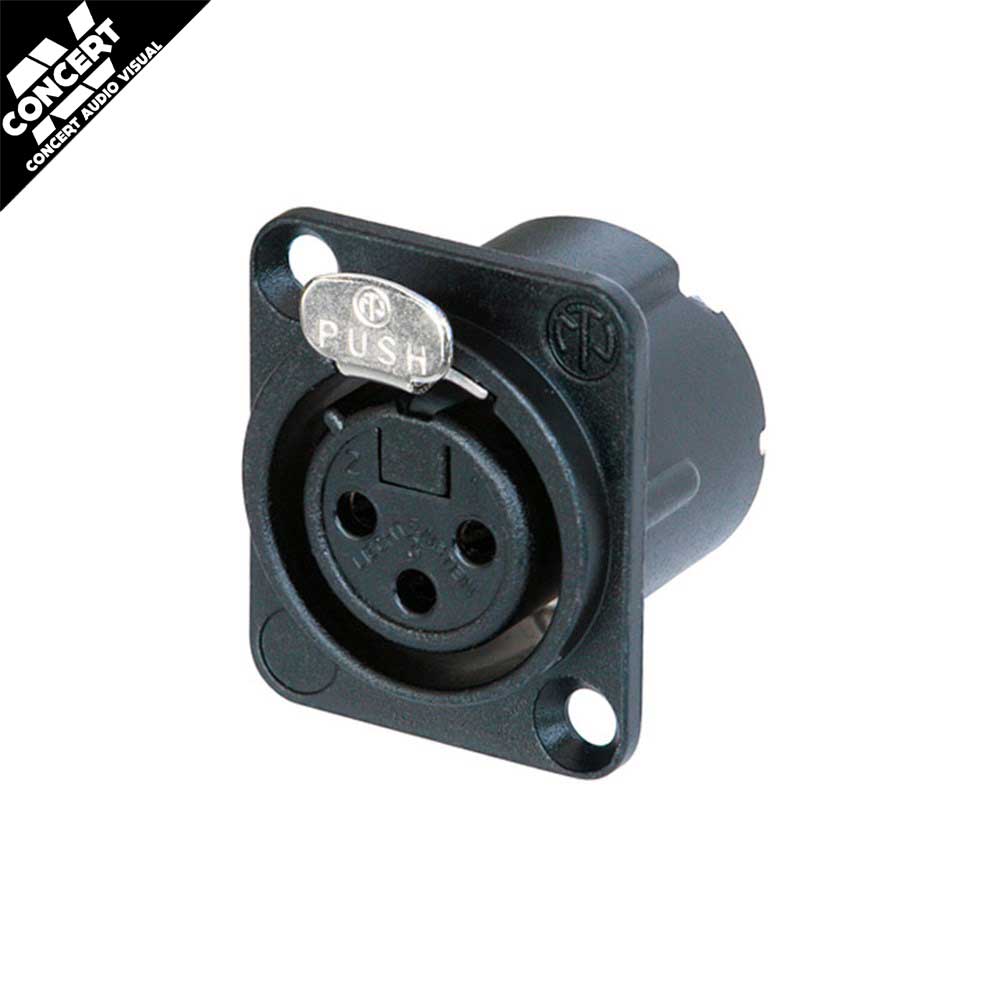

NEUTRIK NC3FD-LX-B - 3 Pin Female XLR Connector BLACK (panel mount)

NEUTRIKSKU: NC3FD-LX-B

Price:
Sale price$10.00

Description

NEUTRIK NC3FD-LX-B – 3-Pin Female XLR Panel Mount Connector (Black, Gold Contacts)

Premium-Grade Connector with Superior Shielding and Gold-Plated Performance

The NEUTRIK NC3FD-LX-B is a rugged 3-pole female XLR panel mount connector designed for high-performance audio and AV applications. With its black metal housing, gold-plated contacts, and industry-standard D-size footprint, this connector delivers not only exceptional signal integrity but also a sleek, professional look ideal for high-end installs and touring rigs.

Key Features:

  • All-Metal Black Housing – Provides outstanding RF protection and electromagnetic shielding

  • Duplex Ground Contact – Ensures continuous electrical contact from chassis to cable connector for enhanced noise resistance

  • Gold-Plated Contacts – Maximise conductivity and durability, ideal for demanding environments

  • Cage-Type Female Contact – Increases contact reliability and reduces wear on mating connectors

  • Solder Barrier Design – Prevents solder from wicking into contact mating area during assembly

  • Large Solder Cups – Allow easy termination with wire sizes up to 14 AWG (2.5 mm²)

  • Optional Pin 1 Ground Link – Enables easy grounding to chassis

  • Standard D-Size Housing – Compatible with universal D-mount panel cutouts

Specifications:

  • Connector Type: 3-Pin Female XLR

  • Mounting: Panel Mount (D-Series)

  • Termination: Solder Cups

  • Housing Finish: Black Metal

  • Contact Plating: Gold

  • Latch: Integrated for secure locking


Whether you're outfitting a professional studio, touring rack, or fixed installation, the NEUTRIK NC3FD-LX-B is a premium solution that combines precision engineering, reliable connection, and superior RF shielding.

Available now at Concert AV – your destination for professional audio connectors and hardware across Australia.
