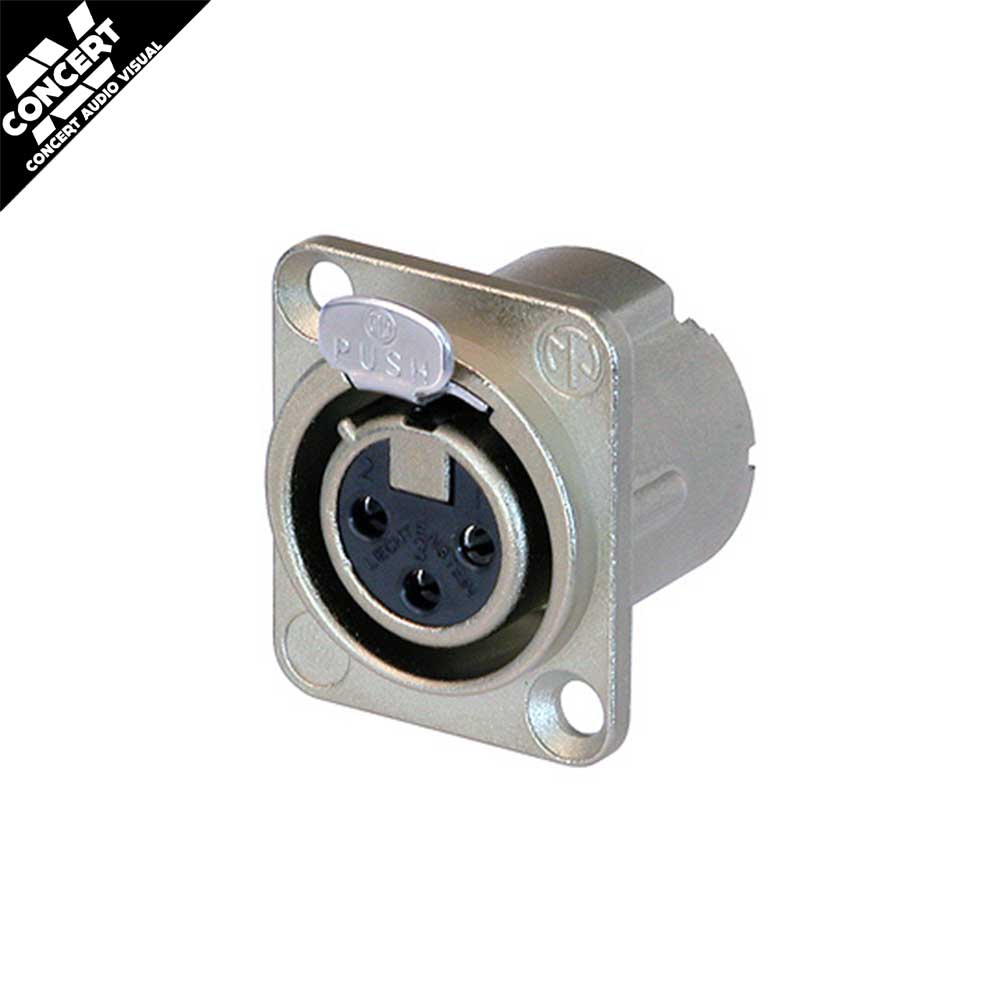

NEUTRIK NC3FD-LX – 3-Pin Female XLR Panel Mount Connector
Professional-Grade XLR Chassis Connector for Superior Audio Signal Integrity
The NEUTRIK NC3FD-LX is a 3-pin female XLR panel mount connector designed for professional audio applications where reliable signal transfer, shielding, and durability are essential. With its nickel-plated all-metal housing, silver contacts, and D-style mounting footprint, this connector is a go-to choice for sound engineers, AV installers, and manufacturers alike.
Key Features:
-
✅ All-Metal Housing – Offers excellent RF protection and electromagnetic shielding
-
✅ Duplex Ground Contact – Ensures secure electrical contact between the connector and chassis for superior noise rejection
-
✅ Cage-Type Female Contact – Enhances conductivity and reduces wear on mating male connectors
-
✅ Solder Barrier Design – Prevents solder from wicking into the contact area during termination
-
✅ Large Solder Cups – Accommodate wire sizes up to 14 AWG (2.5 mm²) for easier and more secure connections
-
✅ Integrated Latch – For a secure and reliable locking connection
-
✅ Optional Pin 1 Ground Link – Simplifies chassis grounding
-
✅ D-Size Universal Housing – Compatible with standard D-mount panel cutouts used worldwide
Specifications:
-
Contact Type: 3-Pin Female (XLR)
-
Mounting Style: Panel Mount (D-Size)
-
Termination: Solder Cups
-
Housing Finish: Nickel
-
Contact Plating: Silver
Perfect for use in audio patch panels, mixing consoles, stage boxes, and installed AV systems, the NEUTRIK NC3FD-LX provides the rugged quality and precision engineering professionals expect from the world’s most trusted connector brand.
Available now at Concert AV – Australia's expert source for pro AV connectors and components.
