Description

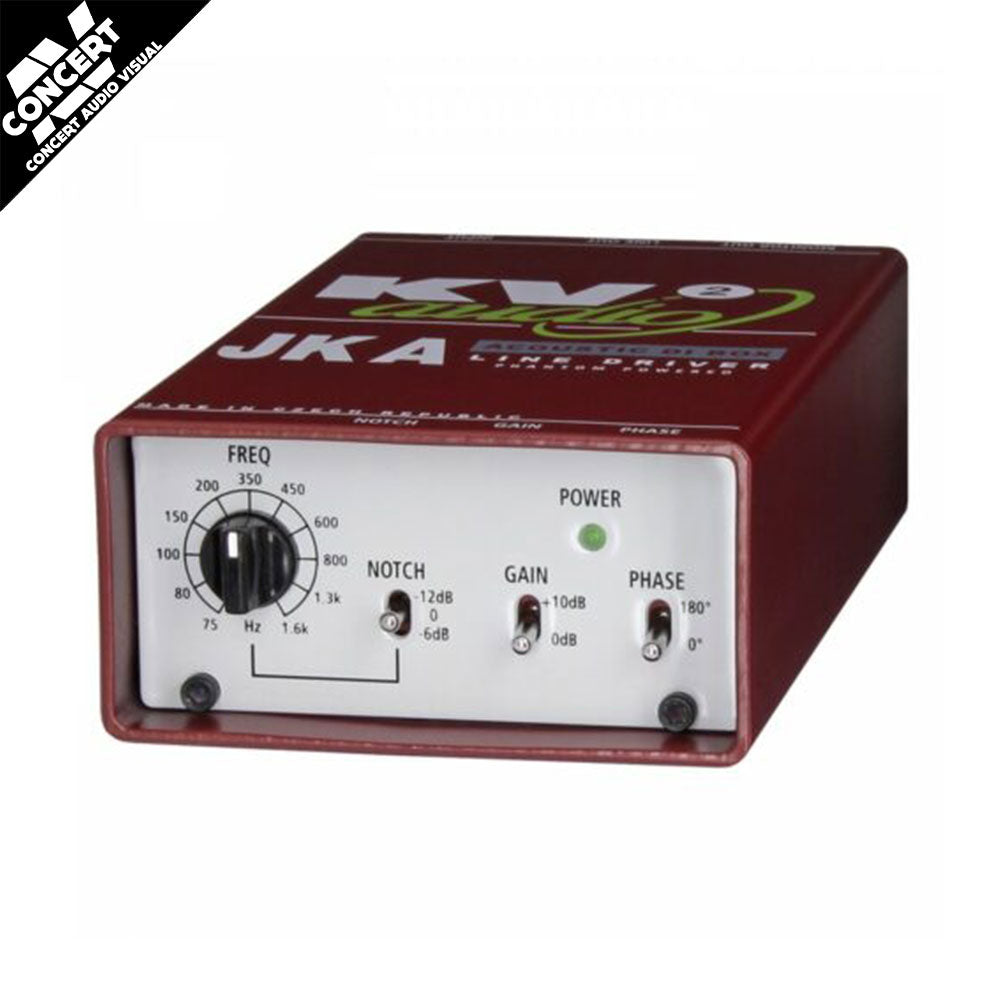

KV2 JKA - Single Channel Active Acoustic DI Box

The JKA is a dedicated DI for acoustic instruments. The JKA features a high-impedance 1/4" jack input capable of receiving signal from all types of pick-ups. A +10dB gain boost is available for low-level instruments. The JKA also features a tuneable notch filter for eliminating the resonant frequency in an acoustic instrument, reducing feedback issues.

Specifically designed as a dedicated single channel Active stage Direct Injection (DI) box for Acoustic instruments to maintain and preserve the signal integrity between input and the mixer

  • Guitars
  • Violins
  • Live performance
  • Fixed installations
  • Portable

Features

  • Phantom power supply
  • High Impedance 1/4" Jack input
  • Tuneable notch filter
  • Adjustable sensitivity: 0, +10dB
  • Two outputs: Low impedance XLR, 600Ω Jack 1/4"
  • Phase switch selector



Specifications

System Acoustic Performance

  • -1dB Response:                            10Hz to 40kHz
  • Dynamic Range:                           >130dB
  • Total Harmonic Distortion:           <0.03%

Signal Input

  • Input Channels:                           1x 1/4" Jack
  • Input Impedance:                        1MΩ
  • Max. Input voltage:                      2,5V / 7V peak

Signal Output

  • Signal Output Channels:             XLR (line) + 1/4" Jack (monitor)
  • Output Impedance:                      50Ω line / 600Ω monitor

Features

  • Gain:                                           0 / +10dB
  • Phase:                                        0° / 180°
  • Notch Filter:                               75Hz to 1650Hz (0, -6, -12dB)
  • Indicators:                                  Power-ON LED
  • Power Requirements
  • Phantom Power                         48 to 56V / 8mA

Cabinet

  • Cabinet Material:                       Heavy duty metal

Physical Dimensions

  • Height:                                      40 mm (1.57")
  • Width:                                       80 mm (3.15")
  • Depth:                                      131 mm (5.16")
  • Weight:                                     600 g (1.32lbs)
