Description

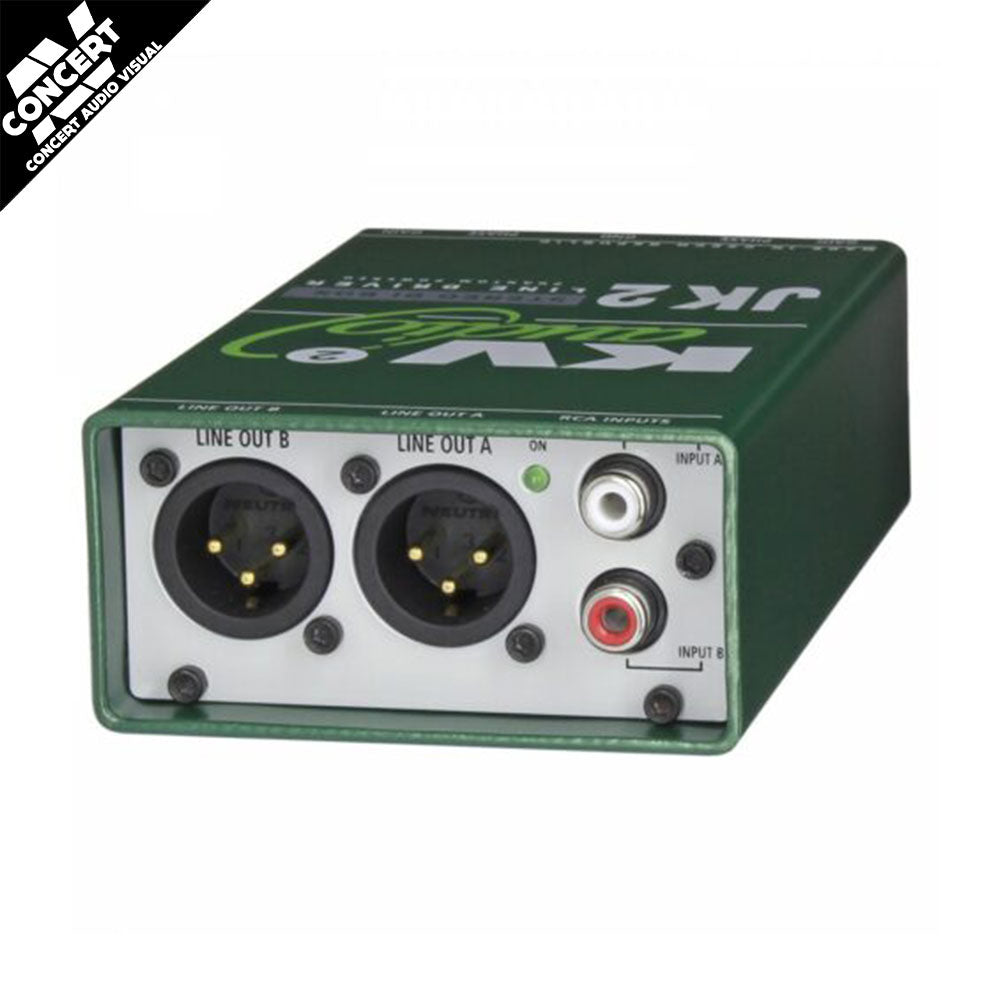

KV2 JK2 - Two Channel Active DI Box
The JK2 features two 1/4" jack inputs with parallel monitor outputs as well as RCA inputs. The JK2 has two completely separate channels and can be used with two different instruments, or stereo keyboards and other two channel sources such as laptops, computers and iPad. The JK2 features a variable pad, Phase shift and Ground lift switch.
Specifically designed as a two channel (Stereo) Active stage Direct Injection (DI) box to maintain and preserve the signal integrity between input and the mixer
- Live performance
- Fixed installations
- Portable
Features
- Line Driver
- Stereo DI
- Phantom power supply
- Multiple inputs: Jacks 1/4", RCAs
- Adjustable sensitivity: 0, -12dB, -24dB
- Low impedance outputs
- LINE OUT - phase switch selector
- GND ground switch selector: Lift/RC/Gnd
Specifications
System Acoustic Performance
- -1dB Response: 10Hz to 40kHz
- Dynamic Range: >130dB
- Total Harmonic Distortion: <0.005%
Signal Input
- Input Channels: 2x 1/4" Jack + 2x RCA
- Input Impedance: 2x 1MΩ / 10KΩ
- Max. Input voltage: 1V / 5V / 20V peak
Signal Output
- Signal Output Channels: 2x XLR, 2x 1/4" Jack THRU
- Output Impedance: 50Ω
Features
- Gain: 0 / -12 / -24dB
- Phase: 0° / 180°
- Indicators: Power-ON LED
- Ground Mode: GND / Lift / RC
Power Requirements
- Phantom Power: 48 to 56V / 8mA
Physical Dimensions
- Height: 40 mm (1.57")
- Width: 80 mm (3.15")
- Depth: 131 mm (5.16")
- Weight: 630 g (1.39lbs)
