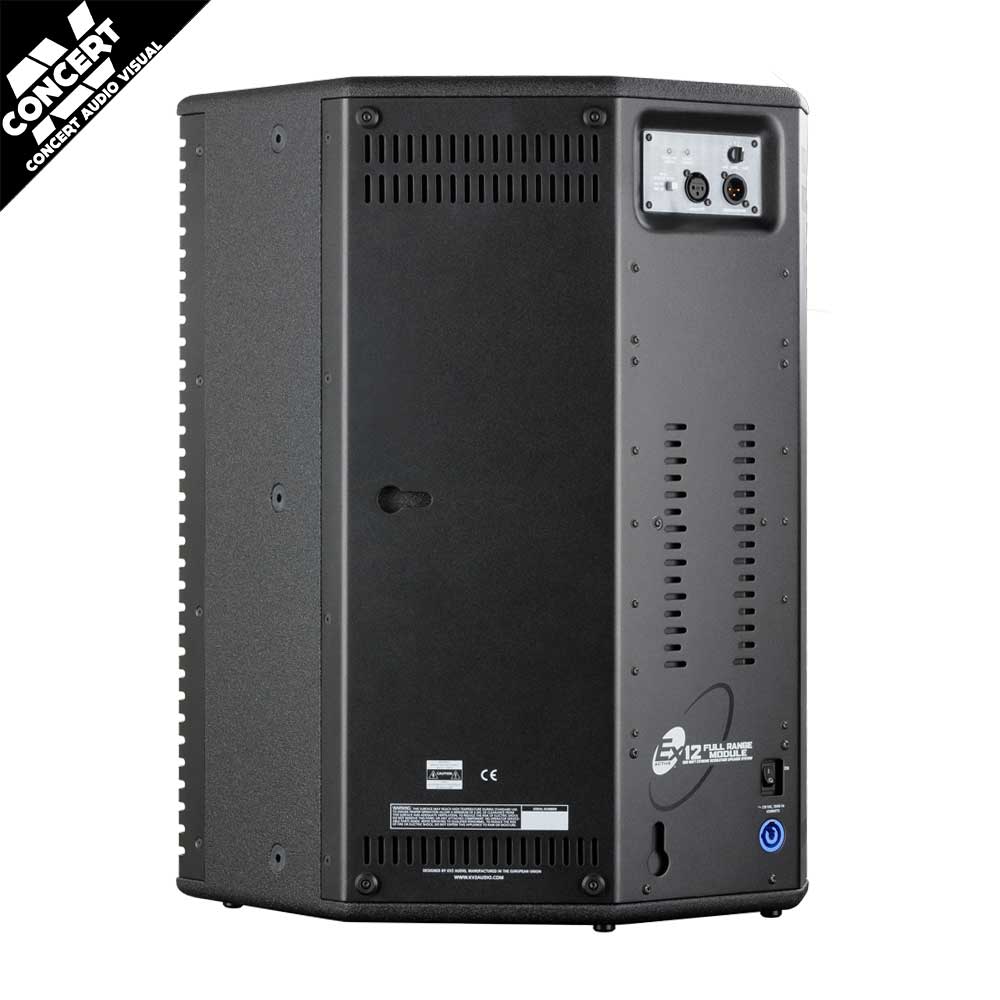

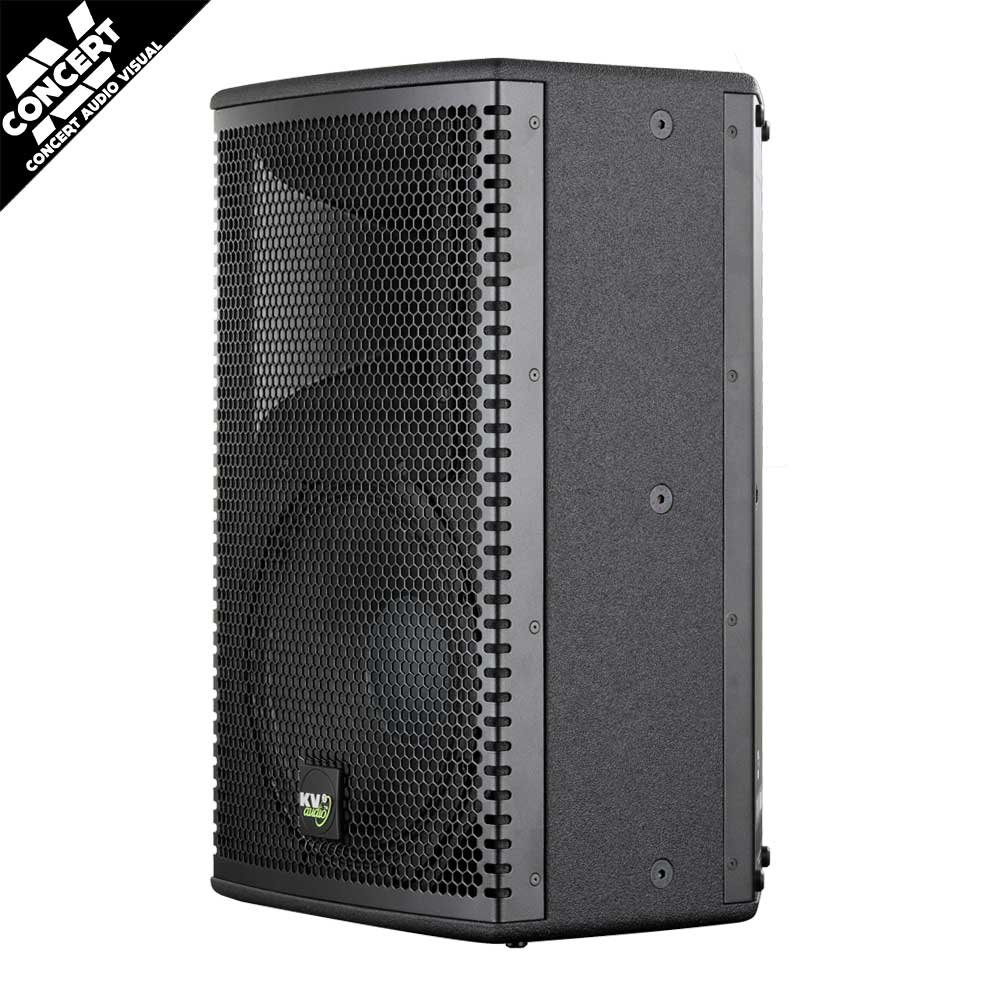

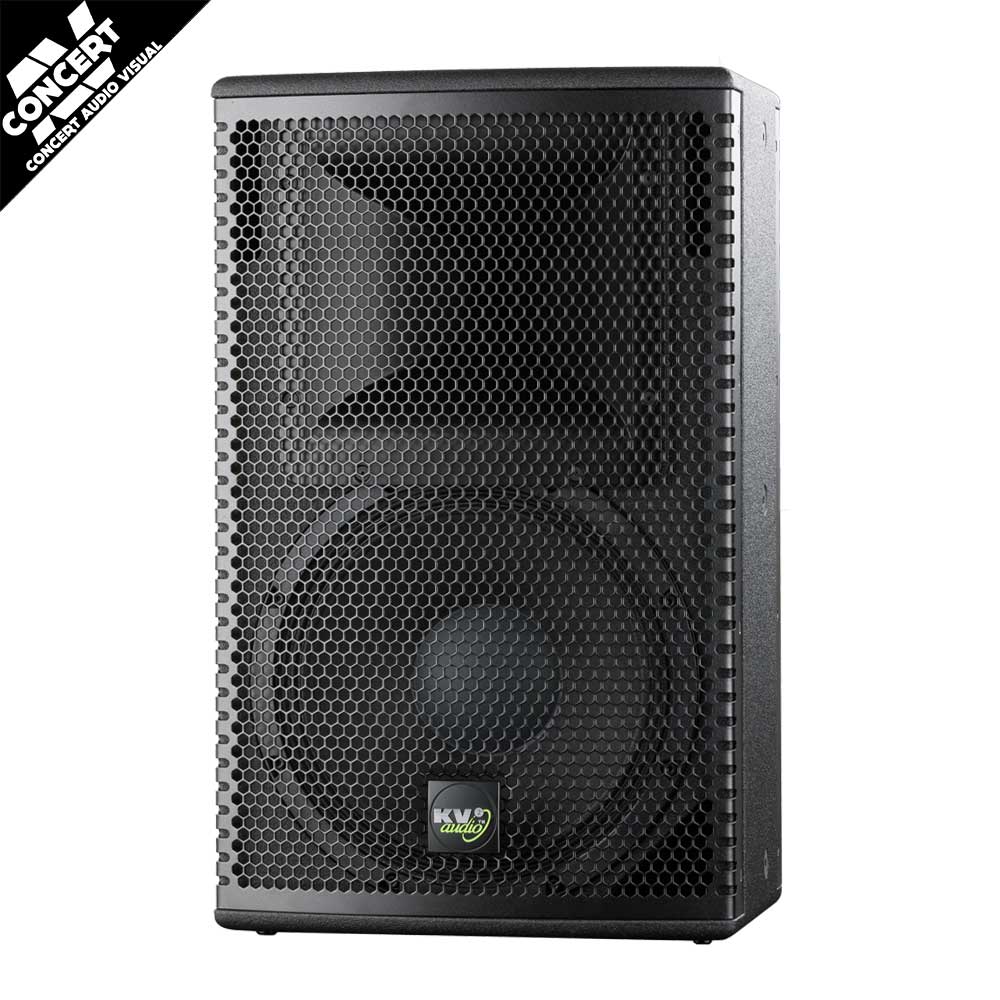

KV2 Audio EX12 12" 2-Way Active Speaker System
The KV2 Audio EX12 is a premium 2-way active loudspeaker designed for high-quality vocal reproduction, live performance, conferences, theatre, fixed installations and stage monitoring. It combines a 12-inch neodymium woofer with KV2's Active Impedance Control technology and a large-format 3-inch nitride-titanium compression driver for exceptional clarity, dynamics and low distortion.
With 500W total continuous power, 127dB sustained output and 133dB peak SPL, the EX12 delivers serious professional performance from a compact enclosure. Complete onboard speaker management handles crossover, phase alignment, EQ and protection.
Key Features
- Professional 2-way active loudspeaker
- 500W total continuous amplifier power
- 127dB sustained / 133dB peak SPL
- 55Hz–22kHz frequency response (-3dB)
- 12" neodymium woofer with Active Impedance Control technology
- 3" nitride-titanium diaphragm compression driver
- 80° horizontal × 40° vertical horn coverage
- Integrated crossover, phase alignment, EQ and speaker protection
- Suitable for standalone PA, stage monitor and fixed-install use
- 35mm pole mount and multiple suspension points
- Professional Baltic birch cabinet with wear-resistant coating
- Neutrik PowerCon power connection
High-Output Professional Performance
The EX12 is designed for medium-size professional applications where clarity, vocal definition and dynamic range are critical. It can be used on its own as a full-range powered speaker or combined with KV2 EX Series subwoofers to build larger systems.
Technical Specifications
- Max SPL: 127dB sustained / 133dB peak
- Frequency Response (-3dB): 55Hz–22kHz
- Frequency Response (-10dB): 45Hz–30kHz
- Crossover Point: 1.1kHz
- LF Driver: 12" neodymium woofer, 3" voice coil
- HF Driver: 1.4" exit / 3" nitride-titanium diaphragm compression driver
- Coverage: 80° H × 40° V
- LF Amplifier: 450W continuous
- HF Amplifier: 50W continuous Class AB
- Total Power: 500W continuous
- Input Sensitivity: 1.0V RMS
- Input Impedance: 20kΩ
- Power: 230V version
- Dimensions: 596 H × 368 W × 368 D mm
- Weight: 27.4kg
Who is this for?
Ideal for AV professionals, bands, live performers, theatres, conference venues, houses of worship, production companies and installers needing a compact premium powered speaker with high output, excellent vocal clarity and flexible mounting options.
