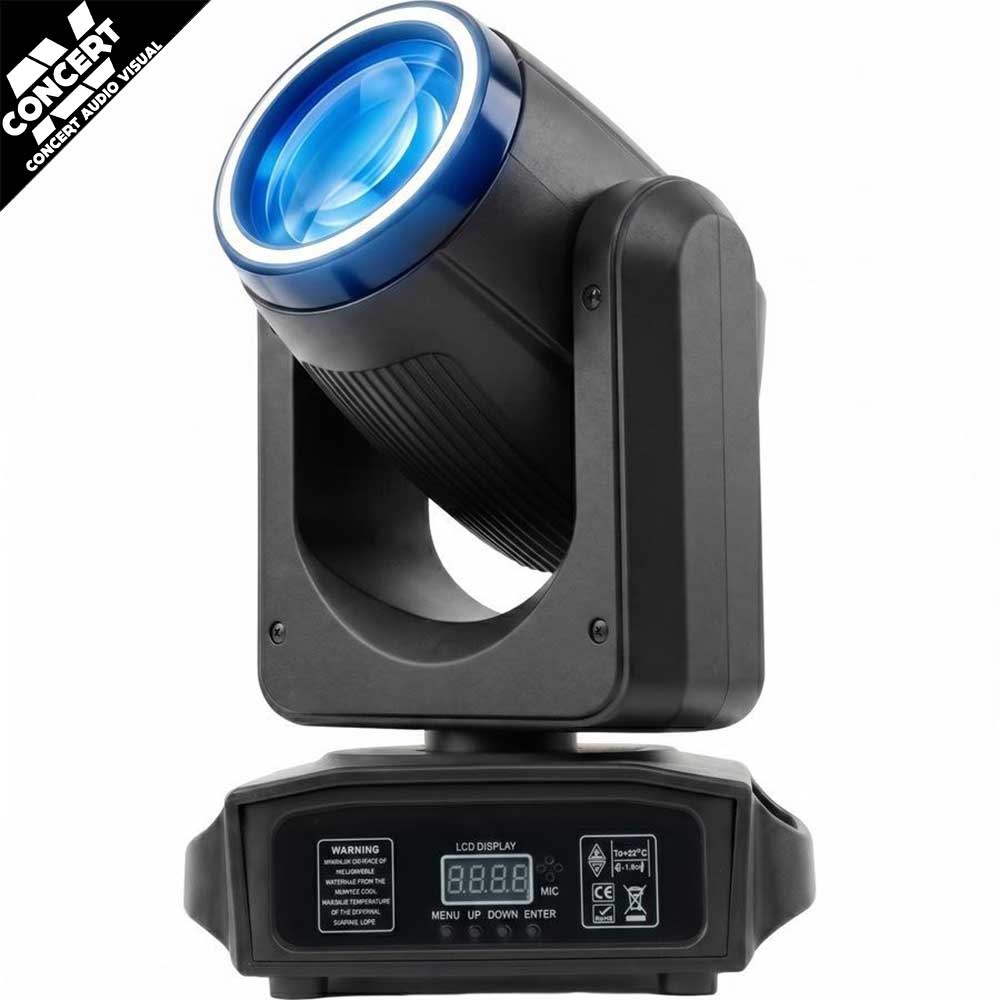

CR Lite Orbis 100 100W LED Beam Moving Head
The CR Lite Orbis 100 is a compact but seriously punchy 100W LED beam moving head designed for DJs, venues, bars, stages, houses of worship and mobile event setups that need sharp beam effects without stepping into large-format moving head pricing.
With a powerful 100W white LED, a tight 2.8° beam angle and an impressive 25,185 lux output at 5 metres, the Orbis 100 is built to create strong aerial beams, sharp movement and high-impact lighting looks. It is ideal for dance floors, stage shows, DJ rigs, live events and venues that want a professional moving light effect in a compact fixture.
Beam, Colour and Effects

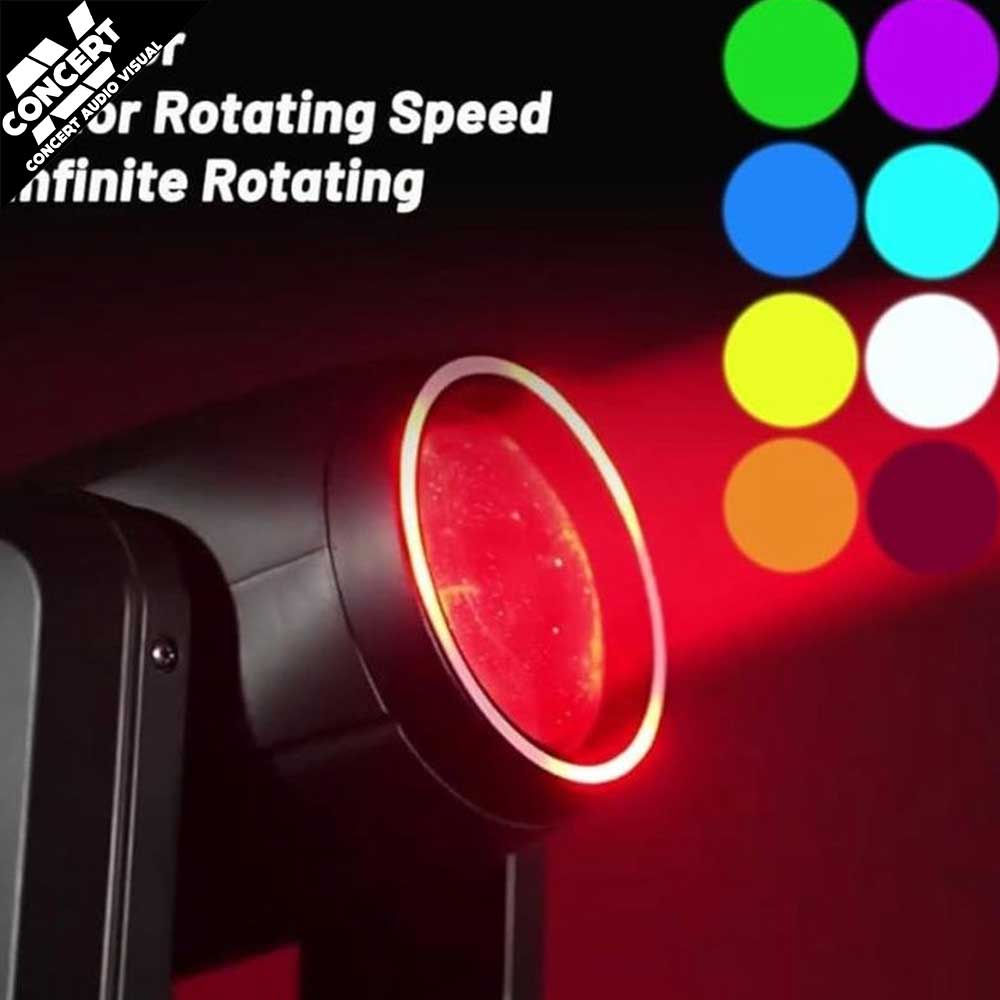

The Orbis 100 combines a clean white beam engine with a vibrant RGB outer ring, giving you both strong beam projection and eye-catching colour halo effects from the same fixture. The 21 RGB strobe LEDs around the outside add extra movement, colour and energy, making it a great option for high-impact DJ and venue lighting.

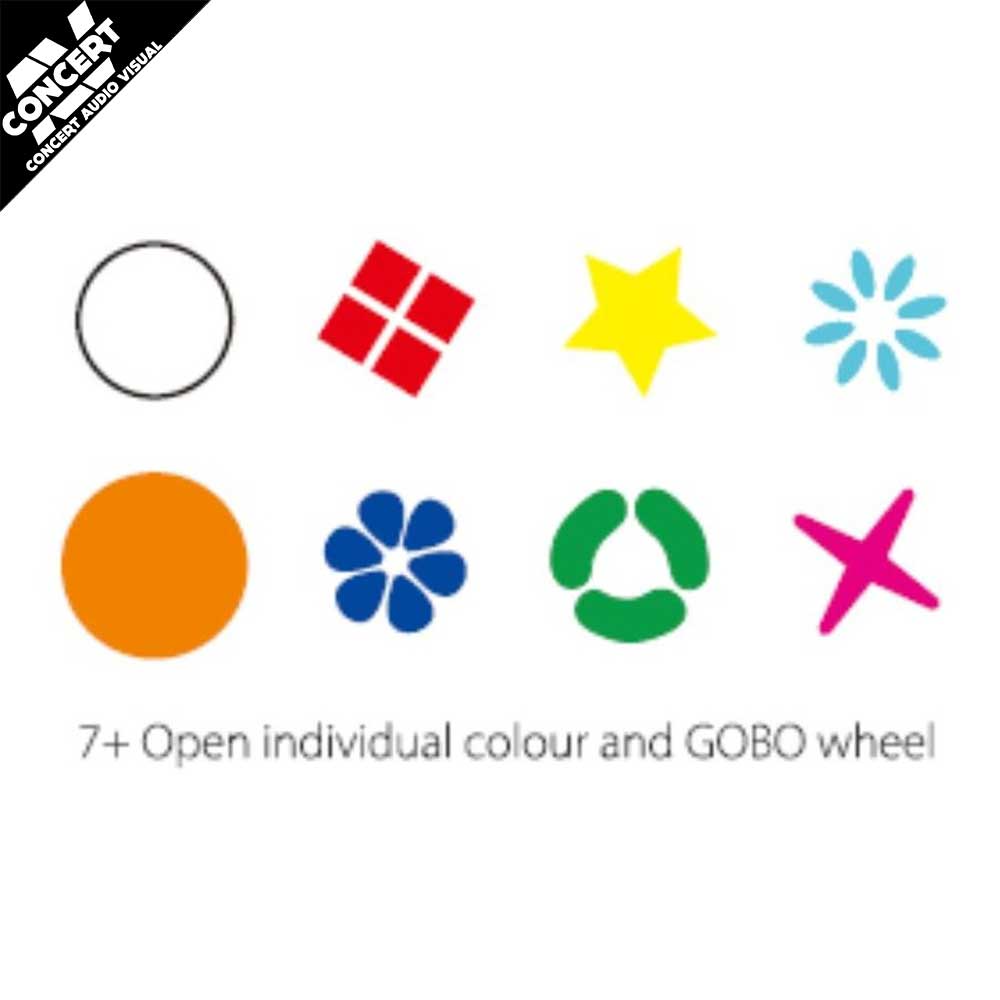

A 7 + open colour wheel, 7 + open gobo wheel and 18-facet rotating prism give you a wide range of looks, from tight aerial beams to split-beam effects and patterned mid-air movement. Whether you are building a simple mobile DJ show or adding extra movement to a venue lighting rig, the Orbis 100 gives you plenty to work with.
Flexible Control for DJs and Venues
The CR Lite Orbis 100 can be operated using 11 or 14-channel DMX control, giving lighting operators full access to movement, colour, gobo, prism and strobe functions. For simpler setups, it can also run in auto, sound-to-light or master/slave modes, making it easy to use even when you do not have a full DMX lighting controller available.
With 540° pan and 200° tilt, the Orbis 100 can cover a wide area with fast, fluid movement. It can be used on truss or operated freestanding with the included mounting bracket, making it suitable for both fixed venue installs and mobile production work.
Why Buy From Concert AV
When you buy the CR Lite Orbis 100 from Concert AV Melbourne, you are buying from a team that understands DJ lighting, venue lighting and real-world event production. We can help you work out whether this fixture suits your setup, how many units you may need, and what control options make sense for your rig.
Concert AV supplies lighting, audio, DJ gear, AV hire and installation support across Melbourne, so you get practical advice from people who actually understand how this gear is used in venues, events and mobile setups.
Key Features
- 100W white LED beam moving head
- Tight 2.8° beam angle
- Output: 25,185 lux at 5 metres
- 21 x RGB 5050 strobe LEDs in outer ring
- Colour halo and RGB strobe effects
- 7 + open colour wheel
- 7 + open gobo wheel
- 18-facet rotating prism
- 540° pan and 200° tilt
- 11 or 14-channel DMX control
- 3-pin DMX input/output
- Auto, DMX, sound-to-light and master/slave modes
- Suitable for truss mounting or freestanding use
- Includes mounting bracket
- Power supply: 110–240V AC, 50/60Hz
- Power consumption: 120W
- Fuse: F2A
- Dimensions: 165mm x 200mm x 300mm
- Weight: 3.8kg
- Ideal for DJs, bars, stages, nightclubs, houses of worship, function venues and mobile event rigs
