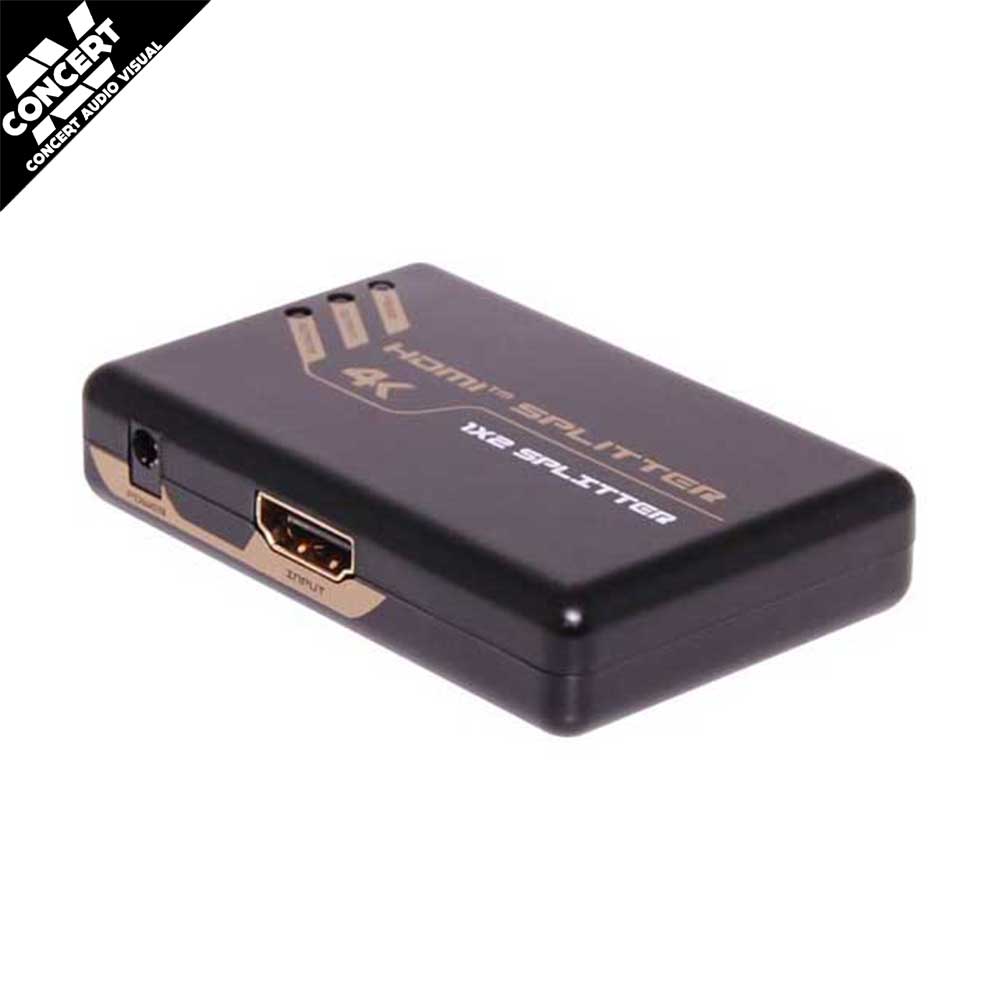

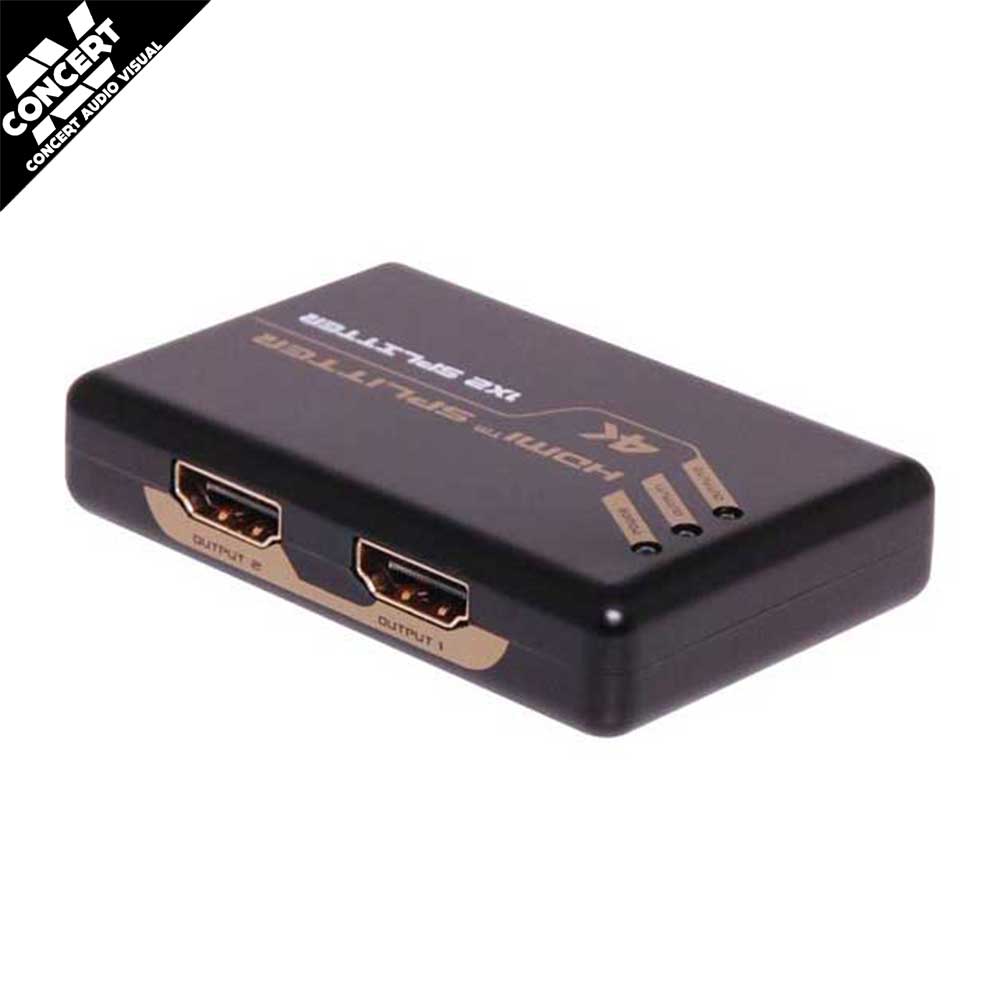

Concert Series A3127 – 2-Way HDMI Splitter V1.4a
The Concert Series A3127 2-Way HDMI Splitter allows you to share one HDMI source across two HDMI displays simultaneously with no loss in video or audio quality. Whether you're setting up a home theatre, sports bar, conference centre, or retail display, this splitter delivers reliable, high-definition performance every time.
With HDMI v1.4a support, it handles 3D video, 4K x 2K resolution, 12-bit deep colour, and lossless HD audio formats like DTS-HD and Dolby TrueHD. It features a high-speed 10.2Gbps bandwidth for seamless signal transfer and includes a 5V power supply for stable operation.
Key Features:
-
Distributes 1 HDMI input to 2 HDMI outputs
-
Supports 4K x 2K, Full HD, and 3D content
-
12-bit deep colour and HD lossless audio support
-
HDCP compliant for protected content playback
-
Compact design – installs in seconds, no setup required
-
Ideal for home theatre, conference rooms, venues, and bars
-
Includes 5V DC power supply
Technical Specifications:
-
HDMI Version: 1.4a with full 3D and 4Kx2K support
-
Bandwidth: 340MHz / 3.4Gbps per channel (10.2Gbps total)
-
Audio Compatibility: LPCM, DTS Digital, Dolby Digital, DTS-HD, Dolby TrueHD
-
Video Resolutions:
-
Interlaced (50/60Hz): 480i, 576i, 1080i
-
Progressive (50/60Hz): 480p, 576p, 720p, 1080p, 4Kx2K
-
-
Input DDC Signal: 5V p-p (TTL)
-
Vertical Frequency Range: 50/60Hz
-
Dimensions: 63mm (L) x 54mm (W) x 18mm (H)
-
Power: 5V DC @ 1A (max power consumption: 5W)
-
Power Supply Included
Plug it in, power it up, and split your HDMI signal with zero hassle.
Available now at Concert AV – your trusted source for pro AV gear.
