Description

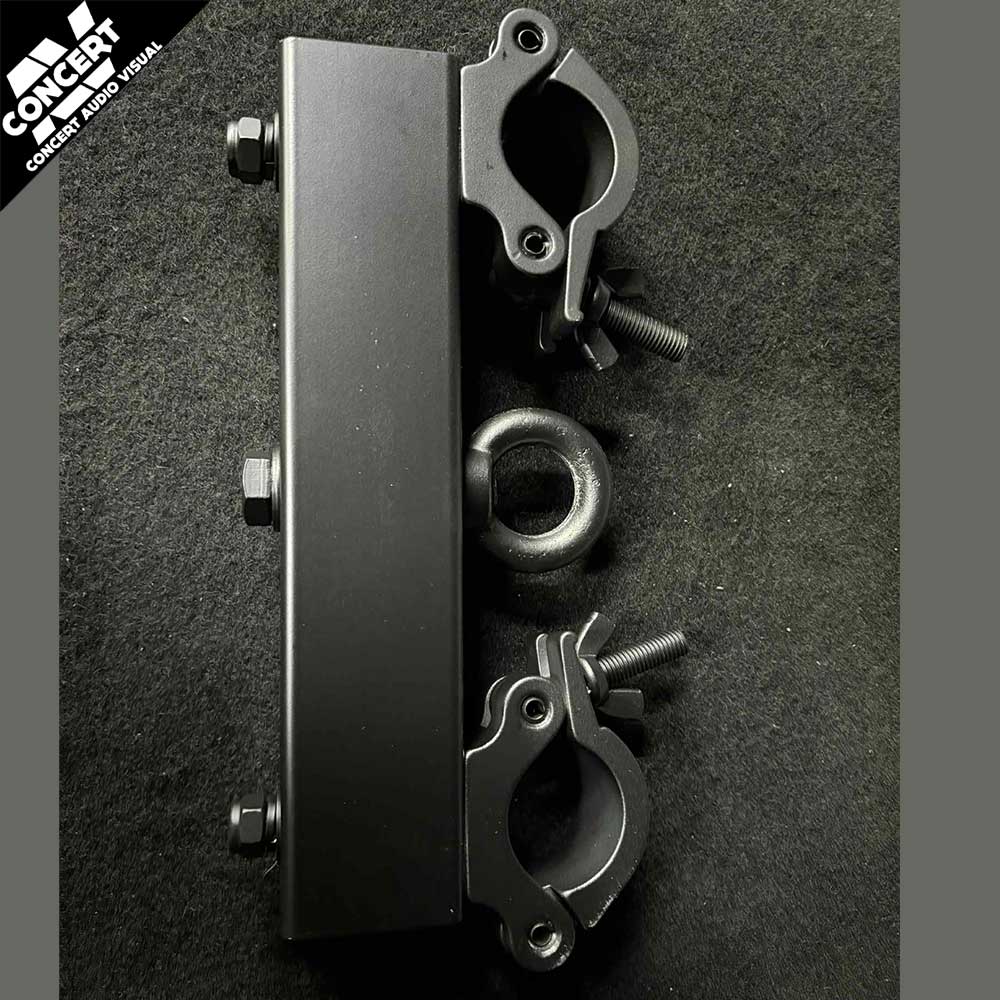

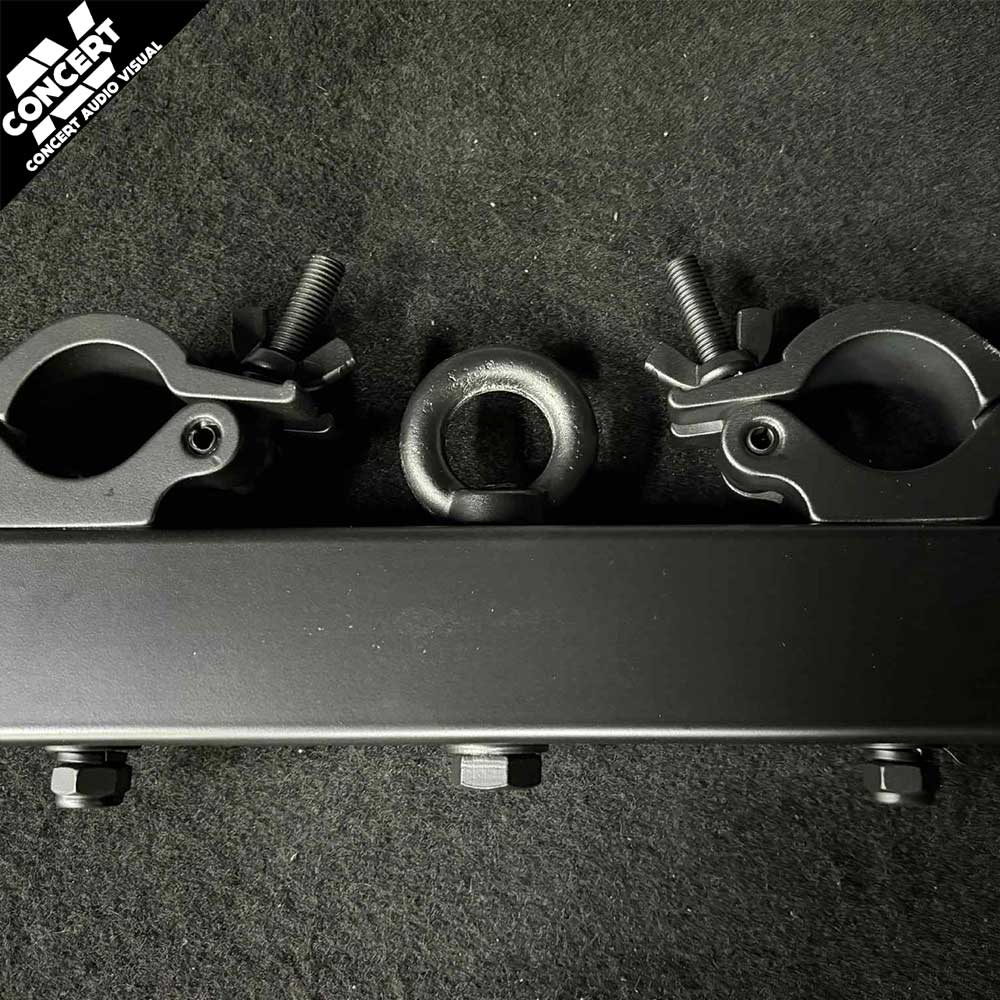

BLACK TRUSS LIFTING BRACKET – 290 MM TRUSS
A rugged, black-finish lifting bracket built for permanent or mobile lighting truss installations. Designed to suit 290 mm box, flat, and tri aluminium truss, it provides a reliable pick point for chain motors, hoists, or shackles when building stages, events, and touring rigs.
Why you’ll like it
-
Versatile fit: Works with 290 mm box, flat, and triangular truss formats.
-
Serious capacity: Maximum load rating (TÜV): 500 kg for confident lifting and suspension.
-
Ready for rigging: M16 eye bolt interface for common rigging hardware.
-
Lightweight & tough: Aluminium construction, approx. 3 kg per unit.
-
Event-proof: Ideal for production companies, venues, and touring setups.
Specifications
-
Compatibility: 290 mm truss (box / flat / tri)
-
Construction: Aluminium
-
Finish: Black
-
Eye Bolt: M16
-
Unit Weight: 3 kg
-
Maximum Load Rating (TÜV): 500 kg
Typical uses
-
Creating lifting points for chain motors or hoists
-
Suspending lighting bars, truss grids, LED walls, or audio hangs
-
Fixed venue installs and mobile production rigs
