BEAM 200 Moving Head - EX HIRE

BEAM 200 Moving Head Light – 200W 5R Sharpy Beam (16 Channel)

EX HIRE  - NO WARRANTY

SPECIAL DEAL - Buy 2 for $1000 and get a free Case. Contact us at sales@concertav.com.au or call on 03 9318 1234 to arrange this.

High-Intensity Beam Effects for Stage, Club & Event Lighting

The BEAM 200 Moving Head Light is a powerful and feature-packed 200W Sharpy-style moving head fixture, perfect for lighting designers, DJs, venues, and event professionals who want tight, punchy beams with advanced control and stunning visual effects. With a high-output 189W Philips 5R lamp, 16-channel DMX control, and an array of colour, prism, and gobo features, this unit delivers spectacular aerial effects and lighting dynamics.

Built with touring durability and performance in mind, the BEAM 200 features super-silent operation, smooth 540° pan / 270° tilt with 16-bit precision, and E-ballast for stable performance. The 8-facet prism, vibrant colour wheel, and detailed gobo effects ensure a versatile light show from stage wash to sharp mid-air patterns.

Features:

🔦 Lamp: 189W Philips 5R with 2,000-hour life – Crisp, powerful beam with 8000K colour temp
🎛 Control Mode: DMX-512 – 16 channels for advanced programming flexibility
🌀 Pan/Tilt Movement:

• Pan: 540° (16-bit precision)

• Tilt: 270° (16-bit precision)
  🎨 Colour Wheel: 14 Colours + White with single rotation rainbow effect
  🔲 Gobo Wheel: 18 Gobos + White with double rotation rainbow effect
  🔷 8-Facet Rotating Prism – With zoom and dynamic mid-air splitting effects
  💡 Strobe Effect: 13 times/sec with pulse and random strobe options
  📟 Display: Blue LCD screen for easy setup and navigation

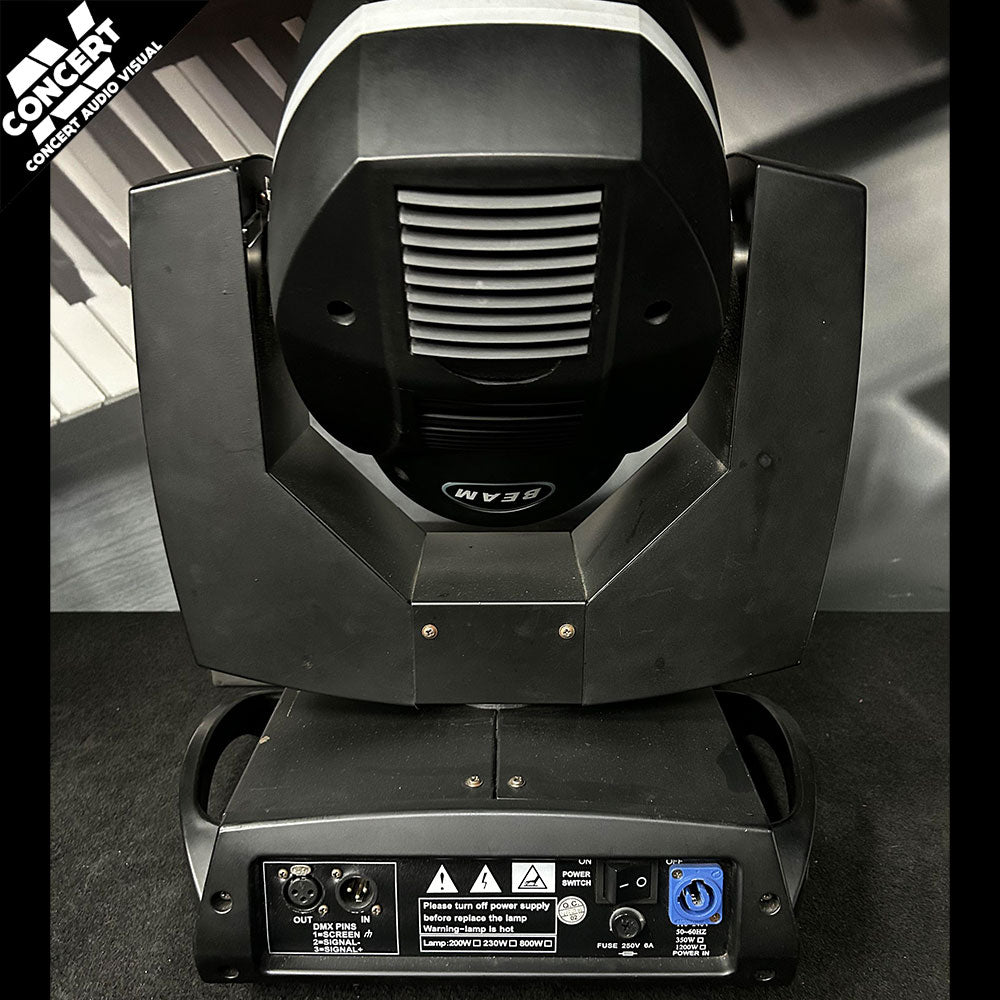

  🔌 Connections: 3-Pin XLR DMX In/Out
  🛠 Housing: Composite Plastic, IP20-rated for indoor use
  🌐 Power Supply: AC100-240V, 50/60Hz
  ⚡ Power Consumption: 230W

---

DMX Channel Functions:

1. Colour Wheel

2. Strobe

3. Dimmer

4. Gobo Wheel

5. Prism On/Off

6. Prism Rotation

7. Effect Movement

8. Frost

9. Focus
   10–11. Pan + Fine
   12–13. Tilt + Fine

10. X/Y Speed

11. Reset

12. Lamp On/Off

---

Perfect For:

• Nightclubs & Bars

• Touring Shows & Stage Performances

• DJs & Event Lighting

• Theatres & Live Productions

🎉 Now available at Concert AV – Bring your light show to life with the BEAM 200.
Precision. Power. Performance.
