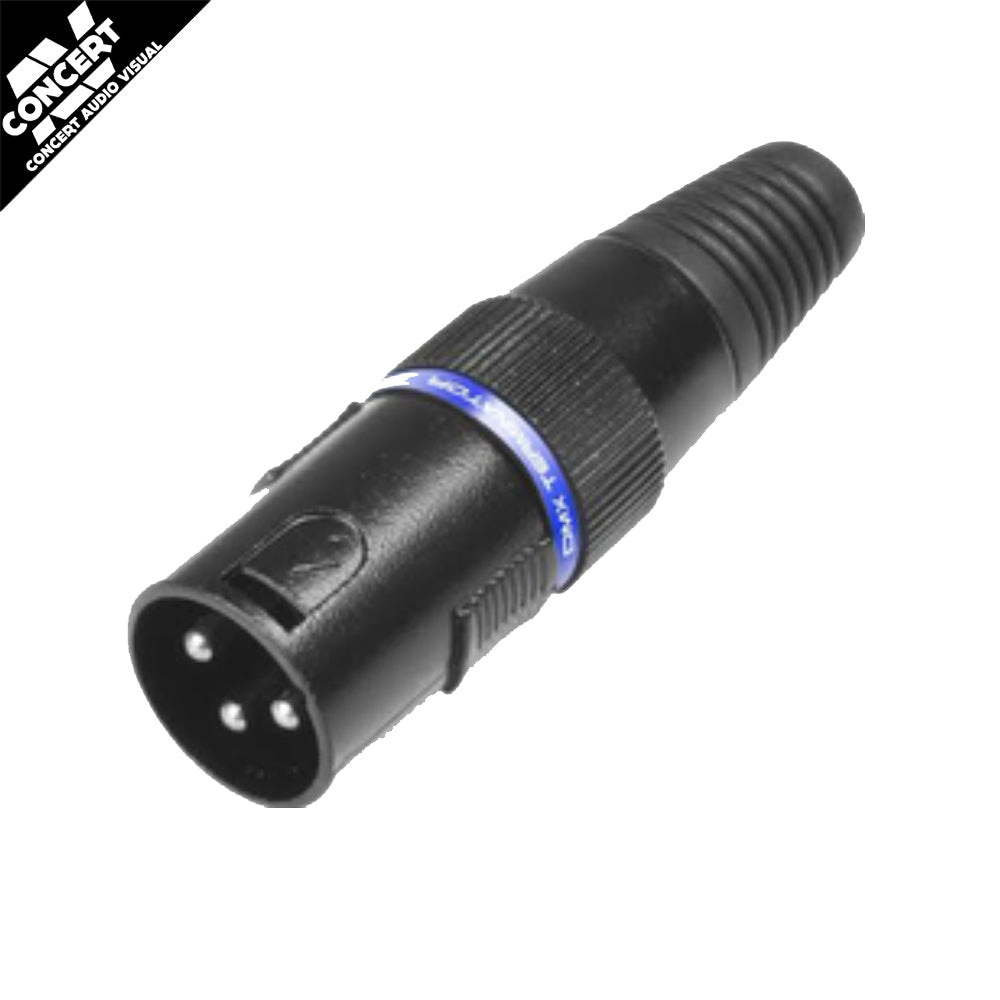

Adam Hall K3DMXT3 DMX Terminator — 3-Pin, 120 Ω (Pack of 2)
Lock down your DMX line and kill signal reflections. The Adam Hall K3DMXT3 is a 3-pin XLR male plug with an integrated 120-ohm resistor across Pin 2 & Pin 3—the proper way to terminate the last fixture on a DMX512 chain. Available from Concert AV Melbourne with fast Australia-wide shipping.
Key Features
-
Correct 120 Ω termination for stable DMX512 operation
-
3-pin XLR male with internal resistor (Pin 2 ↔ Pin 3)
-
Gold-plated contacts for reliable connectivity
-
Die-cast zinc housing with plastic strain relief
-
Pack of 2—terminate main and backup lines or multiple rigs
Specifications
-
Type: DMX terminator
-
Poles: 3
-
Gender: Male
-
Contacts: Gold plated, solder contacts
-
Colour: Black
-
Housing: Die-cast zinc, plastic strain relief
-
Length: 77 mm
-
Diameter: 20 mm
-
Weight: 65 g (each)
-
Resistance: 120 Ω (Pins 2–3)
Usage Tip
Place one terminator in the last DMX device’s output to reduce data reflections and flicker—especially important on long runs and busy universes.
What’s in the Box
-
2 × Adam Hall K3DMXT3 3-pin 120 Ω DMX Terminators
